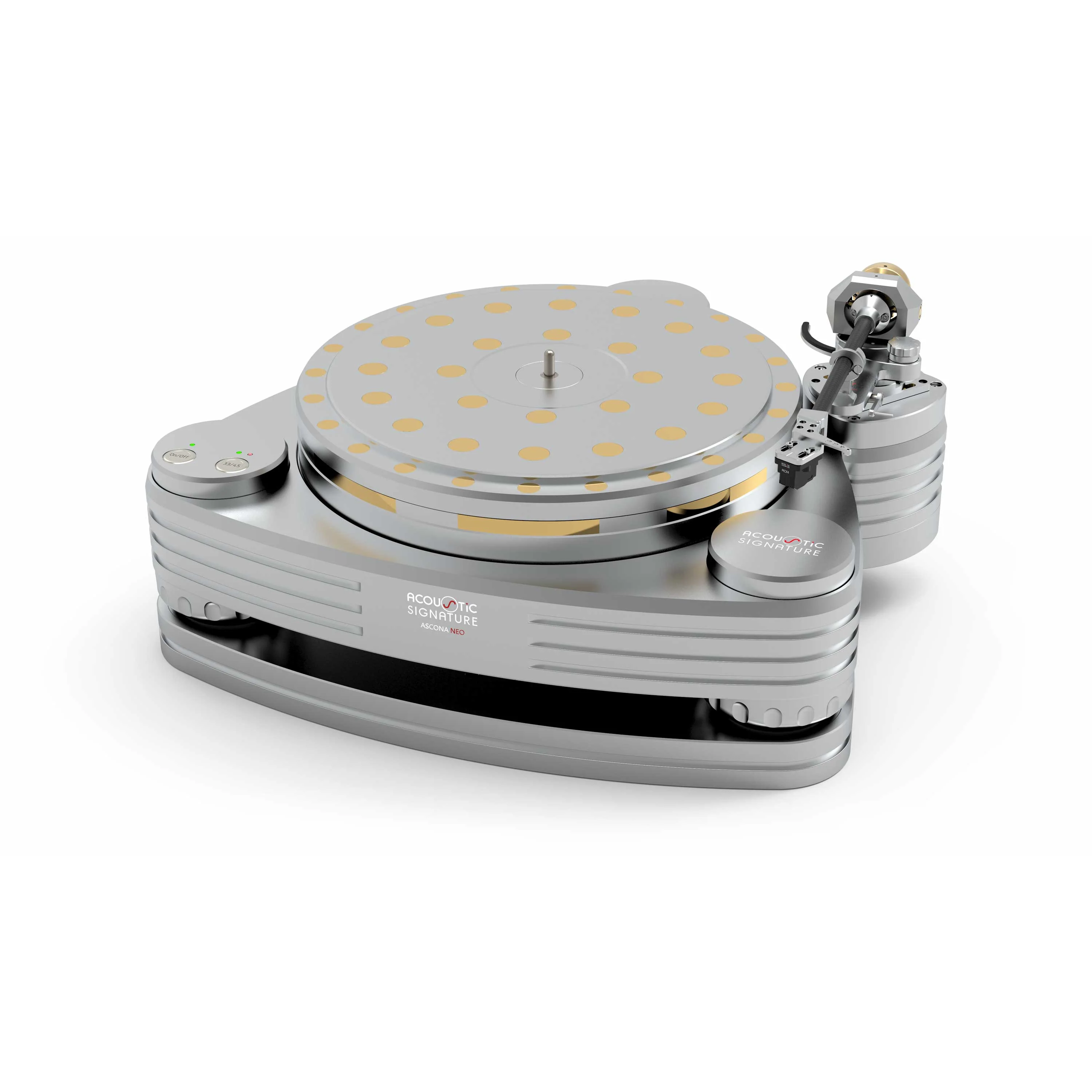

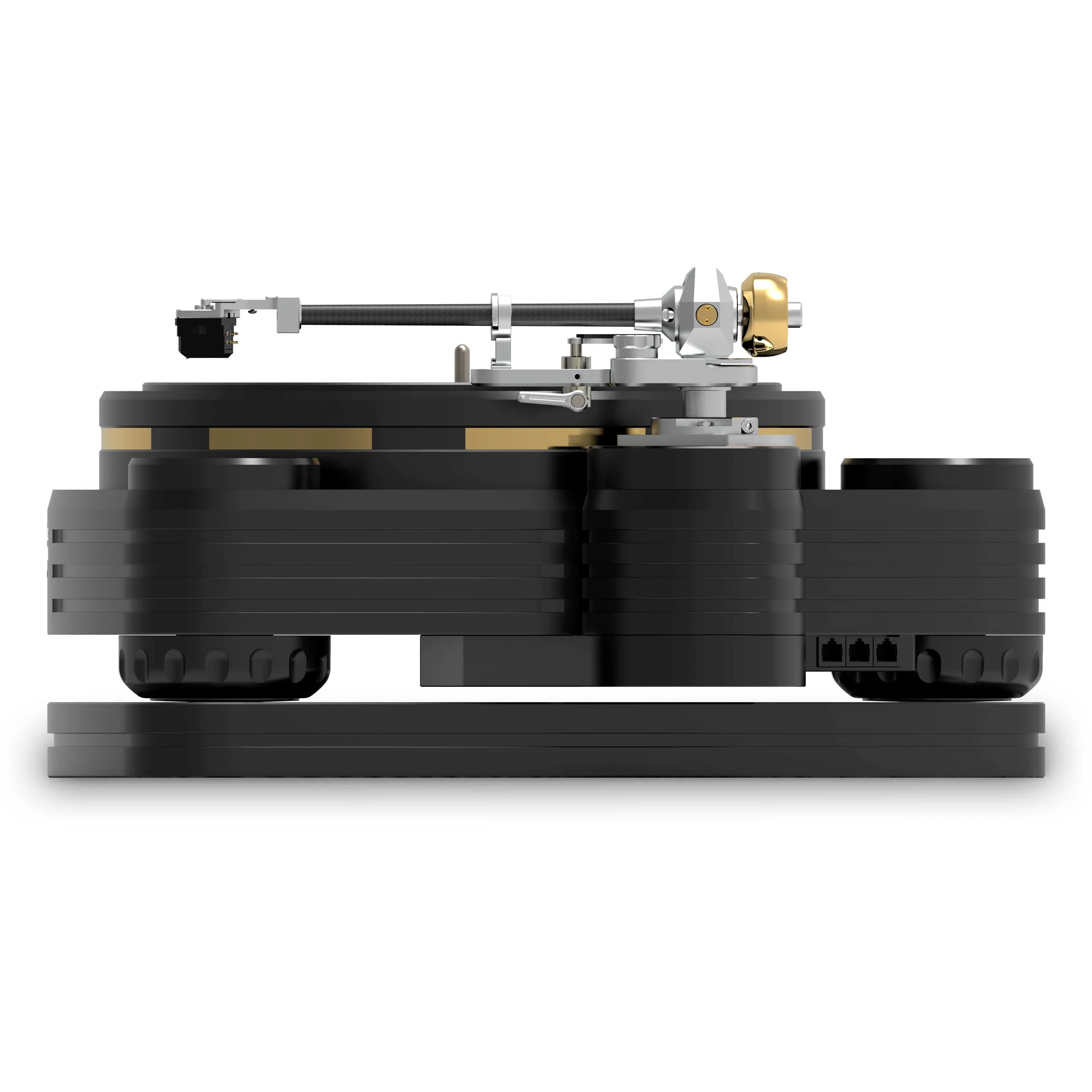

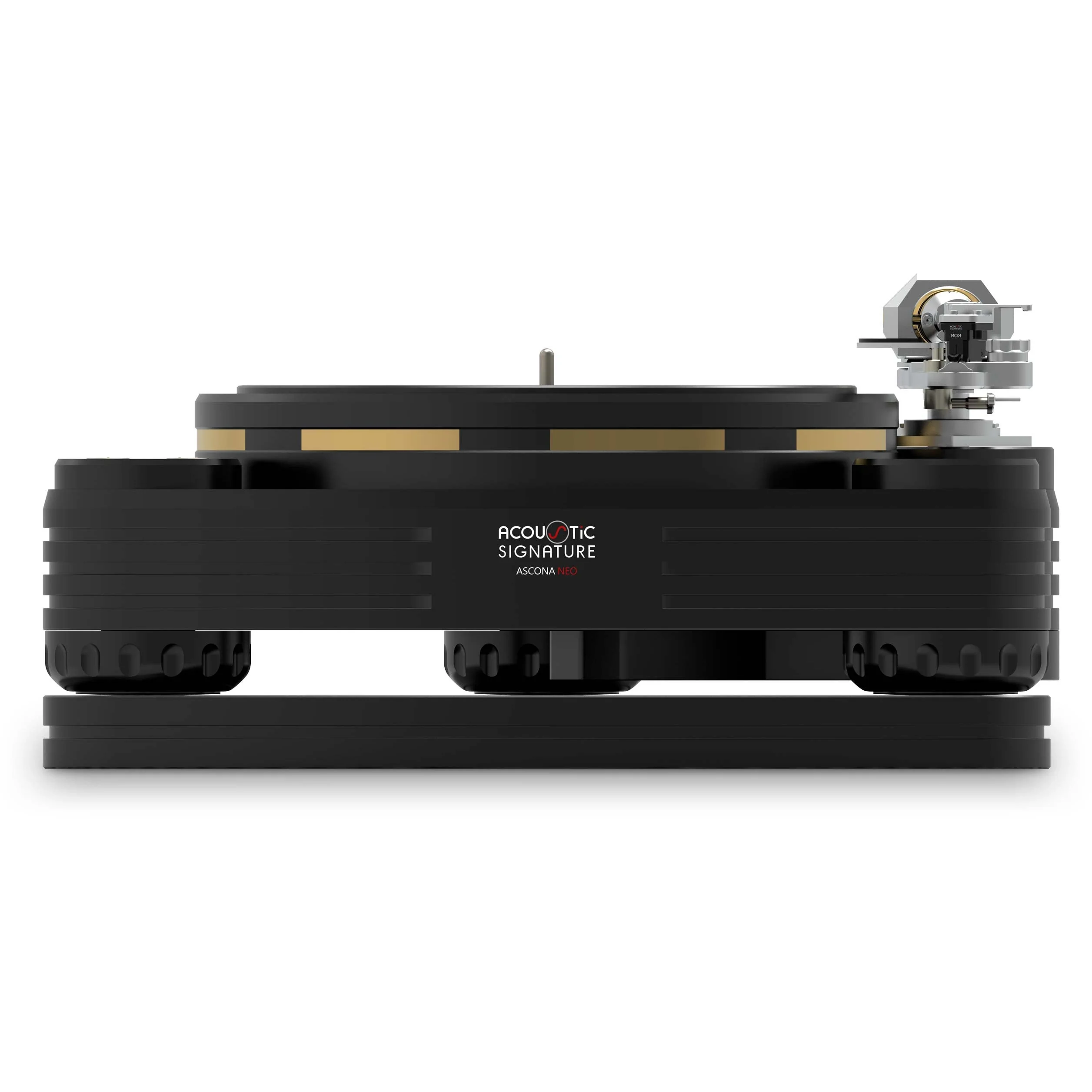

-65%Acoustic Signature Ascona Neo Turntable—
$63,212.41
$22,124.34The Story
Welcome to the absolute top of the world! With its supreme quietness and explosive dynamics, with its generous 3D-imaging and its fine sense for details, the Ascona NEO is at the peak of what is sonically and technically feasible. This high mass turntable not only opens up a new era in our long company history: for many analog lovers the Acoustic Signature Ascona NEO will end a long search.
Special features:
- 3 integrated, completely insulated AC-motors
- External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 3 (Automatic Vibration Control)
- Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
- Oversized, massive anodized aluminum 335 mm sandwich platter with brass layer
- Exclusive silencer technology with 56 silencer modules (24 internal, 32 external) for platter vibration reduction
- Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
- RPM-regulated double belt drive with speed fine adjustment for the subplatter
- Integrated control panel
- 3-point setup with special gel-damped feet and baseplate
- Prepared for up to 3 tonearms
- Up to 3 adjustable armboards for 9 to 12 inch tonearms
- 15-year warranty (with registration)
Specs
| AC-motors: | 3 (completely insulated) |
| Drive system: | RPM-regulated double belt drive with speed fine adjustment for the subplatter |
| AVC: | Level 3 |
| Speed range: | 33 1/3 RPM and 45 RPM |
| Power adapter: |
External digital motor controller DMC-20 with super stable power supply (100 V – 260 V AC, 50 / 60Hz.) (WxDxH: 24 x 22 x 6cm; 2.6 kg) |
| Control panel: | Integrated |
| Bearing: | High-precision Dura Turn Diamond® bearing |
| Tone arm base: | Adjustable mounting boards, exchangeable to fit various tonearms 1 x designed to fit to customers tonearm 2 more armbases mountable (sold separately) |
| Tone arm compatibility: | 9 to 12 inch |
| Maximum number of tone arms: | 3 |
| Platter: | 50 mm anodized aluminum sandwich platter base with brass layer and Silencer modules (Ø 335 x 50 mm / 16.5 kg) |
| Silencer: | 56 |
| Chassis: | 75 mm aluminum alloy |
| Feet: | 3 height-adjustable gel-damped aluminum feet and baseplate |
| Dimensions (WxDxH): | 480 x 460 x 200 mm |
| Weight: | ca. 58 kg |
Available finishes
| Chassis and platter: | Black (anodized), silver (anodized) |
| Silencer: | Polished brass, optional: 24 carat gold-plated or polished chrome |
Package contents
- Ascona NEO chassis
- Platter
- Subplatter
- Armbase
- Baseplate
- External power supply DMC-20
- Power cord
- Patch cable RJ45 blue
- Patch cable RJ45 red
- 3 drive belts
- Tool set
- Carbon mat
- Gloves
- Instruction manual
