$270.44The Story

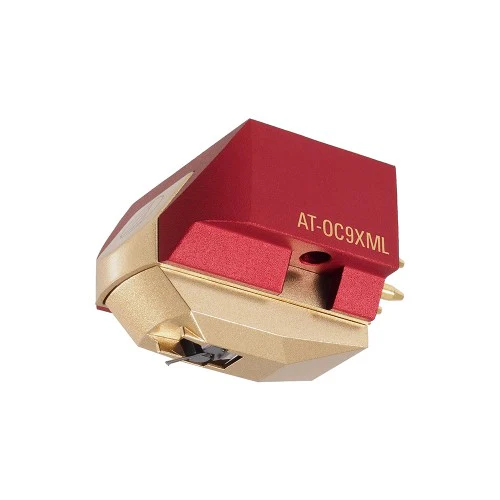

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. Microlinear complex diamond profile enabling higher frequency response, detail like never before experienced and limiting inner groove distortion. Microlinear diamond profile provides low record and stylus wear.
- Features nude Microlinear stylus and boron cantilever which provides lower distortion and high transient response
- A neodymium magnet and permendur yoke provides dramatically increased magnetic energy
- Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
- Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
- Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
Features
- Features nude Microlinear stylus and boron cantilever
- Neodymium magnet and permendur yoke for increased magnetic energy
- Features threaded inserts in the cartridge body
- Aluminium body minimizes unwanted vibration for reduced resonance
- PCOCC is used for the coils to achieve pure signal transmission
Specs
| Model | AT-OC9XML |
| Mounting | 1/2” centers / Threaded |
| Frequency Response | 20 to 47,000 Hz |
| Body Material | Aluminium |
| Channel Separation | 27 dB (1 kHz) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Output Voltage | 0.4 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Shape | Microlinear |
| Stylus Size | 2.2 x 0.12 mil |
| Stylus Construction | Nude square shank |
| Cantilever | 0.28 mm Ø nude boron |
| Coil Impedance | 12 Ohms (1 kHz) |
| Coil Inductance | 25 μH (1 kHz) |
| DC Resistance | 12 Ohms |
| Static Compliance | 20 x 10 – 6 cm / dyne |
| Dynamic Compliance | 16 x 10 – 6 cm / dyne (100 Hz) |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
| Recommended Load Impedance | Min 100 Ohms |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
