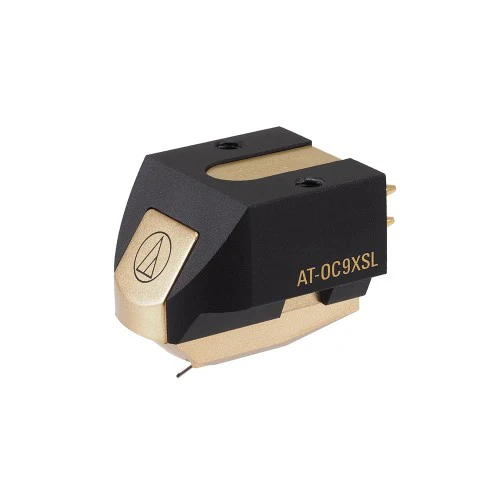

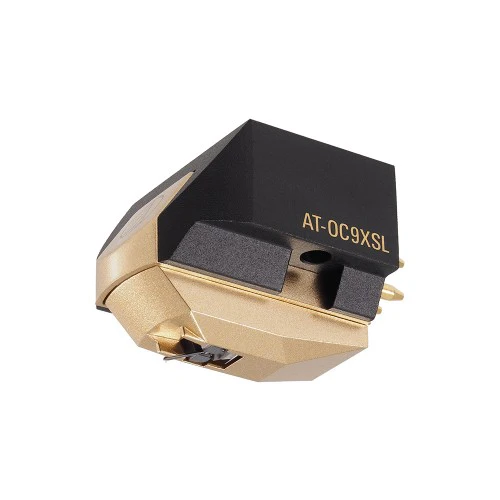

-65%Audio Technica AT-OC9XSL MC Cartridge—
$1,032.47
$361.36The Story
- Features a Nude Special Line Contact stylus and boron cantilever
- Neodymium magnet and permendur yoke for increased magnetic energy
- Features threaded inserts in the cartridge body
- Aluminium body minimizes unwanted vibration for reduced resonance
- PCOCC is used for the coils to achieve pure signal transmission
Specs
| Model | AT-OC9XSL |
| Mounting | 1/2” centers / Threaded inserts |
| Frequency Response | 20 to 50,000 Hz |
| Body Material | Aluminium |
| Channel Separation | 28 dB (1 kHz) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Output Voltage | 0.4 mV (at 1 kHz, 5 cm/sec) |
| Vertical Tracking Angle | 20 degrees |
| Vertical Tracking Force Range | 1.8 to 2.2 g (standard 2.0 g) |
| Stylus Shape | Special Line Contact |
| Stylus Size | 1.5 x 0.28 mil |
| Stylus Construction | Nude rectangular shank |
| Cantilever | 0.28 mm Ø nude boron |
| Coil Impedance | 12 Ohms (1 kHz) |
| Coil Inductance | 25 μH (1 kHz) |
| DC Resistance | 12 Ohms |
| Static Compliance | 22 x 10 – 6 cm / dyne |
| Dynamic Compliance | 18 x 10 – 6 cm / dyne (100 Hz) |
| Terminal Pins | Brass |
| Wire Used for Coil | PCOCC (Copper by Ohno Continuous Casting process.) |
| Recommended Load Impedance | Min 100 Ohms |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 (H) x 16.8 (W) x 25.7 (L) mm |
| Accessories Included | 1 non magnetic screw driver 1 brush 2 washers 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector |
