Original: $5,900.39
-65%$5,900.39
$2,065.14The Story

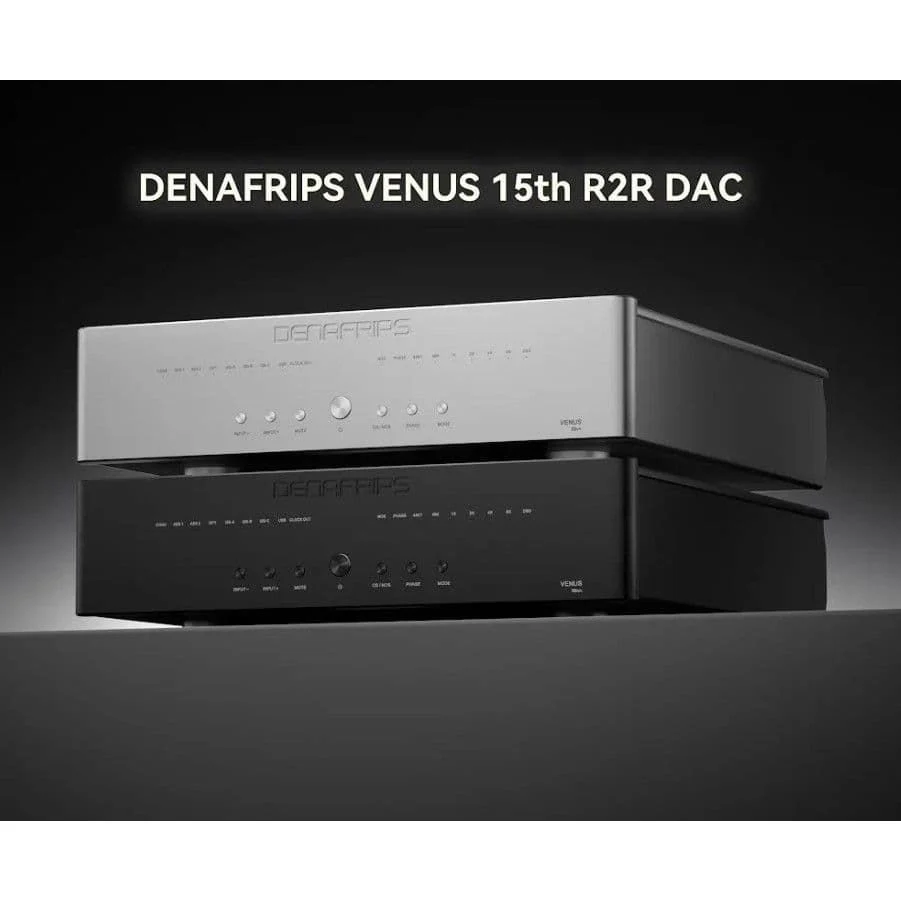

DENAFRIPS VENUS 15th DAC
Featuring a new-generation circuit architecture, enhanced with flagship-level technology, the system achieves deep and accurate sound reproduction.
Exquisite Dnd Minimalist DAC Design
Equipped with a high-precision audio clock output interface, paired with audio devices featuring external clock input, offering audiophiles a more advanced synchronized clock system for enhanced performance.
VENUS 15th And VENUS 12th Transformer Comparison
Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable reliable, and pure power source.
The VENUS 12th uses two 80W single-crystal copper transformers, while the VENUS 15th now uses one 80W and one 250W single-crystal copper transformer, which results in superior sound quality for the VENUS 15th.
High-End Custom Rhodium-Plated Power Terminal
Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable, reliable, and pure power source.
Specifications
| R-2R DAC | Proprietary R2R + DSD Architecture |
| True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) | |
| Matched Precision Thin Film 0.005% R-2R Network Arrays | |
| Highlight | Encapsulated Ultra Low Noise Power Supply |
| High-end Oven Controlled Crystals OCXO | |
| Total isolation of Digital and R-2R Boards | |
| Adaptive FIFO Buffer and Reclocking | |
| DSD1024, PCM1536 Supports On USB & I²S Input | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| Dual AES/EBU Input Supports | |
| Sharp/Slow Filters Option | |
| I²S Pinout Configuration | |
| I²S DSD Channel Swap Configuration | |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input |
| DSD1024 / 45.1584MHz * On USB & I²S Input Only | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input |
| 1536kHz* On USB & I²S Input | |
| Digital Input | Coax via RCA |
| TOSLink x 1 | |
| AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) | |
| USB2.0 Type B | |
| I²S via HDMI LVDS | |
| I²S via RJ45 LVDS | |
| I²S via RJ45 LVCMOS | |
| Analog Output | RCA at 2.2Vrms, 625 Ω |
| XLR at 4.4Vrms, 1250 Ω | |
| Sampling Mode | Non-Oversampling NOS |
| Oversampling OS | |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | ≤20W |
| Frequency Response | 20-40KHz -0.2dB |
| THD+N | 0.001% |
| S/N Ratio | 127dB |
| Dynamic Range | >132dB |
| Stereo Crosstalk | -110dB |
| Dimension | 430 x 380 x 105 mm(without feet） |
| Weight | 19 Kg |
| Colour | Silver / Black |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
DENAFRIPS VENUS 15th DAC
Featuring a new-generation circuit architecture, enhanced with flagship-level technology, the system achieves deep and accurate sound reproduction.
Exquisite Dnd Minimalist DAC Design
Equipped with a high-precision audio clock output interface, paired with audio devices featuring external clock input, offering audiophiles a more advanced synchronized clock system for enhanced performance.
VENUS 15th And VENUS 12th Transformer Comparison
Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable reliable, and pure power source.
The VENUS 12th uses two 80W single-crystal copper transformers, while the VENUS 15th now uses one 80W and one 250W single-crystal copper transformer, which results in superior sound quality for the VENUS 15th.
High-End Custom Rhodium-Plated Power Terminal
Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable, reliable, and pure power source.
Specifications
| R-2R DAC | Proprietary R2R + DSD Architecture |
| True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters) | |
| Matched Precision Thin Film 0.005% R-2R Network Arrays | |
| Highlight | Encapsulated Ultra Low Noise Power Supply |
| High-end Oven Controlled Crystals OCXO | |
| Total isolation of Digital and R-2R Boards | |
| Adaptive FIFO Buffer and Reclocking | |
| DSD1024, PCM1536 Supports On USB & I²S Input | |
| Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU | |
| Licensed Thesycon USB Driver For Windows Platform | |
| Driverless On Mac & Linux | |
| Dual AES/EBU Input Supports | |
| Sharp/Slow Filters Option | |
| I²S Pinout Configuration | |
| I²S DSD Channel Swap Configuration | |
| DSD | DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input |
| DSD1024 / 45.1584MHz * On USB & I²S Input Only | |
| PCM | 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input |
| 1536kHz* On USB & I²S Input | |
| Digital Input | Coax via RCA |
| TOSLink x 1 | |
| AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported) | |
| USB2.0 Type B | |
| I²S via HDMI LVDS | |
| I²S via RJ45 LVDS | |
| I²S via RJ45 LVCMOS | |
| Analog Output | RCA at 2.2Vrms, 625 Ω |
| XLR at 4.4Vrms, 1250 Ω | |
| Sampling Mode | Non-Oversampling NOS |
| Oversampling OS | |
| AC Power Requirement | 100-240VAC, 50/60Hz (Worldwide Voltage) |
| Power Consumption | ≤20W |
| Frequency Response | 20-40KHz -0.2dB |
| THD+N | 0.001% |
| S/N Ratio | 127dB |
| Dynamic Range | >132dB |
| Stereo Crosstalk | -110dB |
| Dimension | 430 x 380 x 105 mm(without feet） |
| Weight | 19 Kg |
| Colour | Silver / Black |
