The Story
All EMT Novel products are equipped with the innovative EMT multi-layer core transducer with titanium/sapphire cantilever. Incredible realistic performance is achieved, while at the same time the tried and trusted EMT typical specs are respected.

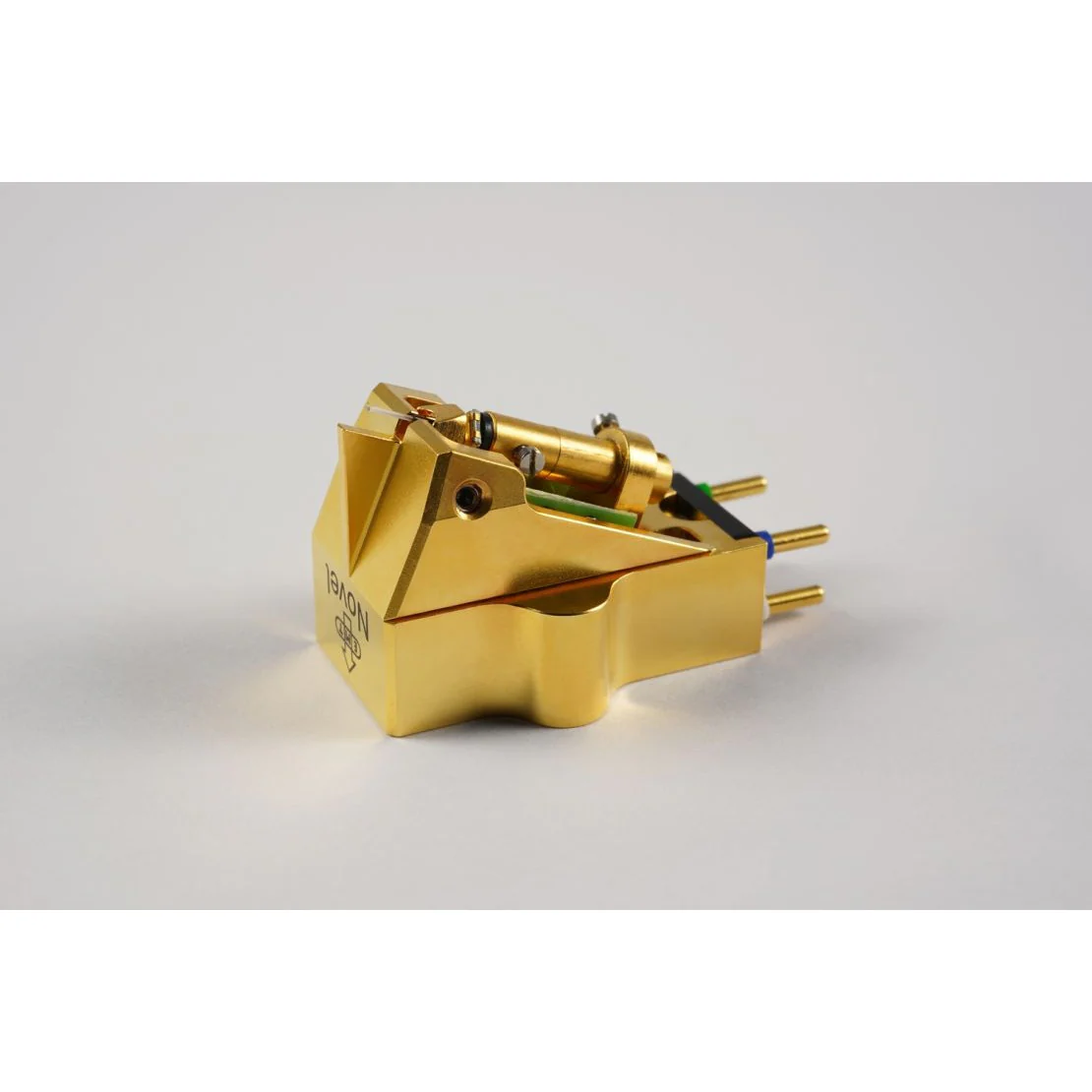

The JSD Novel Goldfeatures a high-density body and pure gold coil for rich and harmonic audio experience. The matt surface gold plated.
| Diamond: | MR HP |
| Cantilever: | Titanium / Sapphire |
| Transducer: | EMT multi layer core technology |
| Coil: | Pure Gold |
| Magnet: | AlNiCo, gold-plated |
| Body: | High densitiy, gold plated |
| Connection: | 1/2" – 4pin |
| Vertical Tracking Angle: | 23° |
| Weight: | 18g |
| Tracking force: | 2,1g |
| Output voltage: | 1mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 - 30‘000Hz |
| Impedance: | 2x 20Ω |
| Recommended load: | 100 - 200Ω |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
All EMT Novel products are equipped with the innovative EMT multi-layer core transducer with titanium/sapphire cantilever. Incredible realistic performance is achieved, while at the same time the tried and trusted EMT typical specs are respected.
The JSD Novel Goldfeatures a high-density body and pure gold coil for rich and harmonic audio experience. The matt surface gold plated.
| Diamond: | MR HP |
| Cantilever: | Titanium / Sapphire |
| Transducer: | EMT multi layer core technology |
| Coil: | Pure Gold |
| Magnet: | AlNiCo, gold-plated |
| Body: | High densitiy, gold plated |
| Connection: | 1/2" – 4pin |
| Vertical Tracking Angle: | 23° |
| Weight: | 18g |
| Tracking force: | 2,1g |
| Output voltage: | 1mV @ 5cm/s |
| Compliance: | 12µm/mN |
| Frequency response: | 20 - 30‘000Hz |
| Impedance: | 2x 20Ω |
| Recommended load: | 100 - 200Ω |
