Emotiva BasX A1 Power Amplifier

BasX A1

• Audiophile quality Class A/B output stage.
• Linear power supply with a hefty toroidal transformer and plenty of filtering.
• Designed to sound great with every speaker and all types of music.
• Monoblock design for the ultimate in separation and flexibility.

The BasX A1 is a monoblock power amplifier that delivers 200 watts into 8 Ohms and 325 watts into 4 Ohms, with a rated THD+N of <0.02%, and an A-weighted S/N ratio of 112 db. The BasX A1 features a heavy-duty linear power supply, high-quality Class A/B amplification, transparent fault protection, and a trigger input and output. A high-quality industry standard unbalanced RCA input enables the BasX A1 to be used with almost any preamp or processor and audiophile-grade five-way speaker terminals accept banana plugs, spade lugs, or bare wire. These features combine to enable the BasX A1 to deliver true audiophile performance and sound quality at an amazingly affordable price.

In addition to the features, it shares with Emotiva's other BasX power amplifiers, as a true monoblock, the BasX A1 also offers several other benefits that will be appreciated by dedicated audiophiles. Monoblocks offer the ultimate assurance that there will be no unwanted interaction between channels. The audio signal for each channel is handled by a separate amplifier, powered by its own heavy-duty power supply, housed in its own separate chassis. This also gives you the option of minimizing the length of your speaker cables by locating each amplifier close to the speaker it powers.

Simply choose as many BasX A1 monoblocks as you need today… or use them for your most critical channels today and upgrade your other channels later. And, of course, a BasX A1 is also a great way to upgrade your centre channel to match your main stereo pair.

Key Features

Strong Yet Silent System Protection
Audiophile-grade fault protection is entirely transparent under normal listening conditions yet protects the amp and your other equipment from virtually all common faults.

Sound Quality First
This product is designed to sound great in various audio systems and music genres. It features a Class A/B output stage for smooth, detailed sound and natural imaging. Its low noise, wide bandwidth design and optimized input stage allow for high-definition sources to be heard. It is stable with real-world speakers and offers true monoblock design for absolute channel isolation.

Solid Engineering and Quality Construction

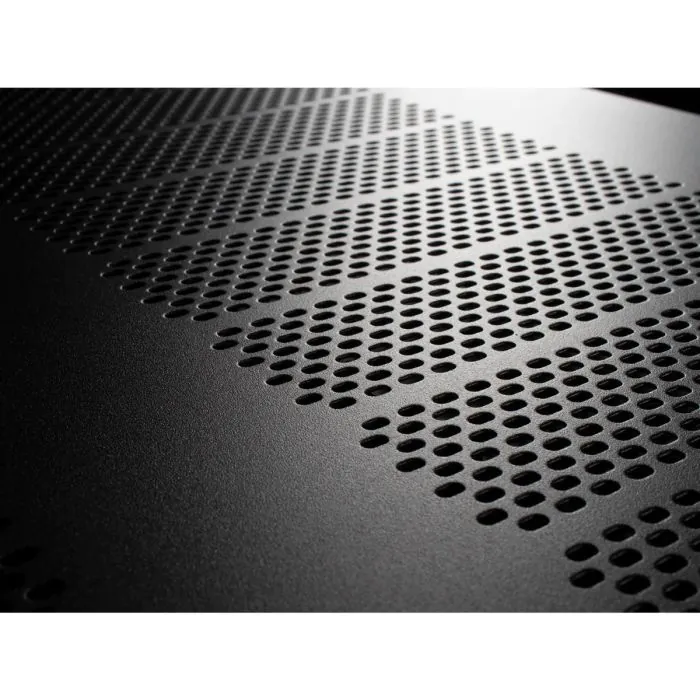

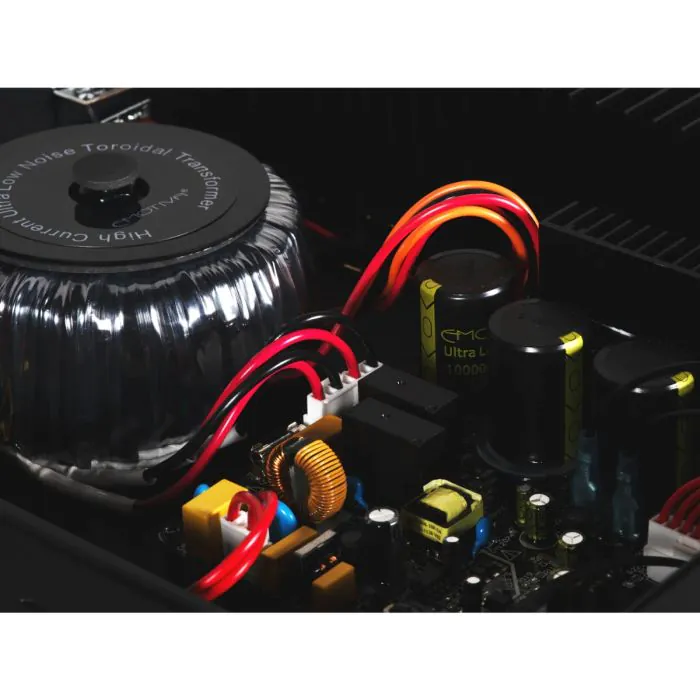

The speaker features a heavy-duty linear power supply with an oversized toroidal transformer, top-quality parts, and a heavy steel chassis with a milled aluminium faceplate. It also features double-sided FR4 circuit boards with plated-through holes for optimized signal paths and minimized point-to-point wiring.

Flexible Signal Connections and Power Options

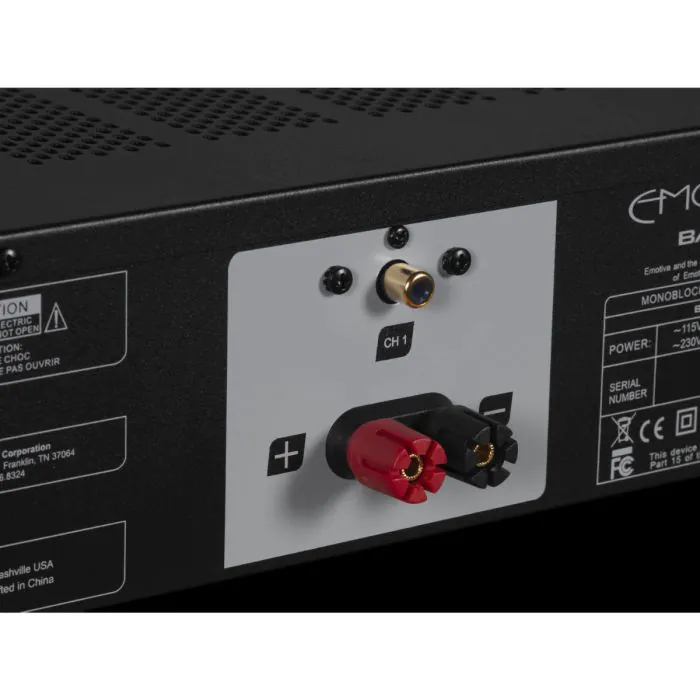

The BasX A1 is a versatile speaker that accepts all standard unbalanced interconnects and features heavy-duty insulated five-way speaker binding posts for a wide range of cables. It also has a remote trigger input and output for control and can be controlled by other equipment. It operates on either 115 VAC or 230 VACS at 50/60 Hz and automatically configures itself for the correct line voltage.

Stylish New Look

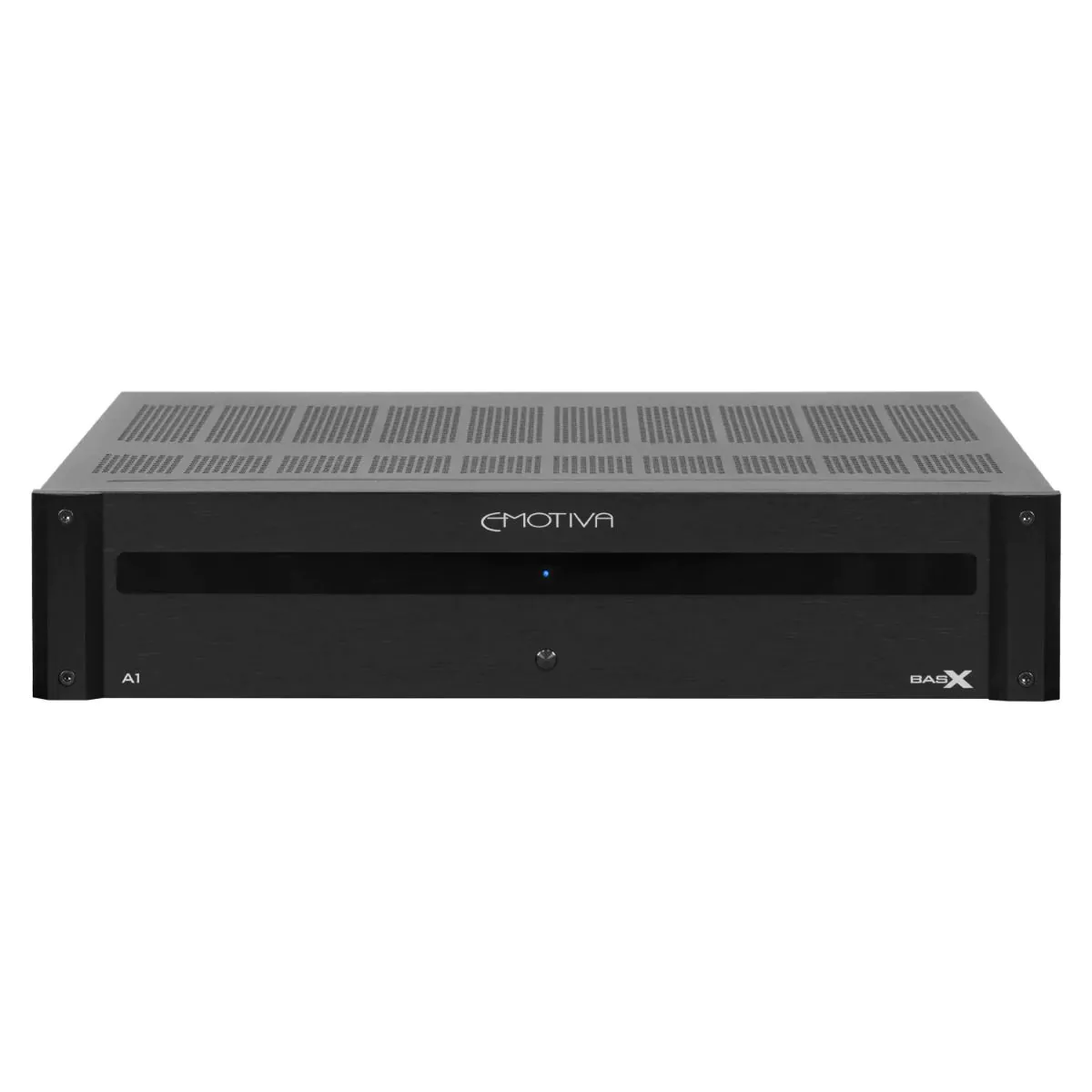

Emotiva's redesigned front panel gives the new BasX A1 a sleek modern aesthetic that fits well with virtually any room décor.

Size and Weight
Dimensions	432mm x 102mm x 394mm
Weight	9.98kg
Audio Specifications
Power Output	200 watts RMS; 20 Hz – 20 kHz; THD <0.05%; into 8 Ohms 325 watts RMS; 1 kHz; THD <0.1%; into 4 Ohms
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load)	20 Hz to 20 kHz (+ / – 0.07 dB)
Broad Band Frequency Response	5 Hz to 80 kHz +0/-1.8 dB
THD + noise	<0.02% (A-weighted); ref rated power
Signal to Noise Ratio (8 Ohm load)	>112 dB; referenced to rated power; (A-weighted)
Minimum Recommended Load Impedance (per channel)	4 Ohms (equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load)	>500
Input Sensitivity (for rated power; 8 Ohm load)	1.6 V
Gain	29 dB
Input Impedance	27 kOhms
Input and Output Connections
Input Connection	Unbalanced (RCA)
Speaker Output Connections	Audiophile grade 5-way binding posts
Trigger	Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements
Power Requirement	115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected)
Front Panel Controls and Indicators
Standby	Push button
Status LED	One; blue
Status LED	Changes to red to indicate a fault condition
Standby LED	Amber
Rear Panel Controls
AC Power switch	Rocker switch (switches AC main power)
Status LED switch	Disables front panel Status LED
Mechanical
Protection	The BasX A1 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions
