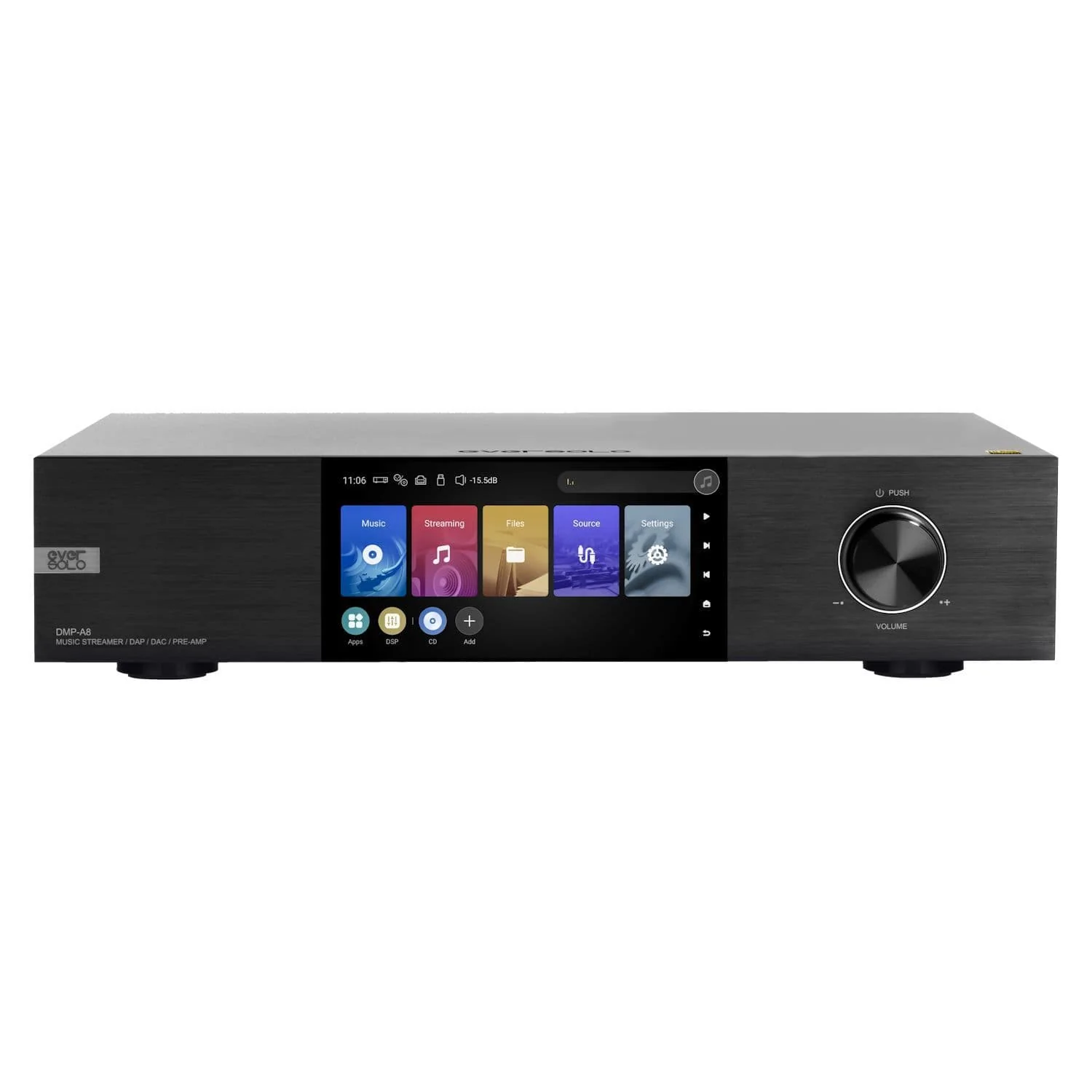

Eversolo DMP-A8 Streaming DAC/PRE Amplifier

Special in-store Price of £1789!! Please dial 0203 916 6330 And select your local store.

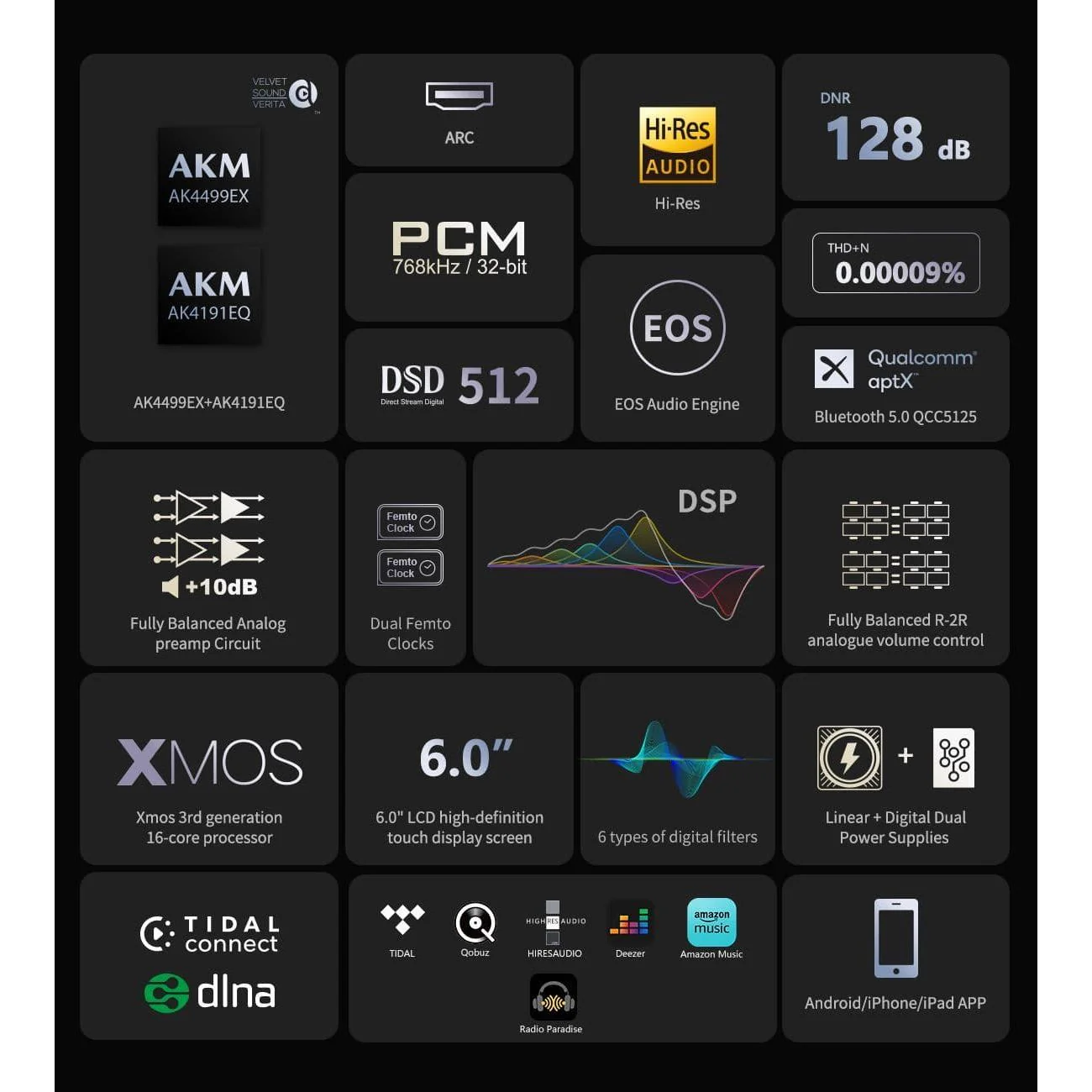

• Fully balanced R2R Analogue Volume Control.
• RCA and Fully Balanced XLR Analogue Inputs.
• AKM Velvet Sound (Verita) DAC.
• Linear & Digital Dual Power Supplies.
• EOS Audio Engine for Direct/Native Audio Passthrough.

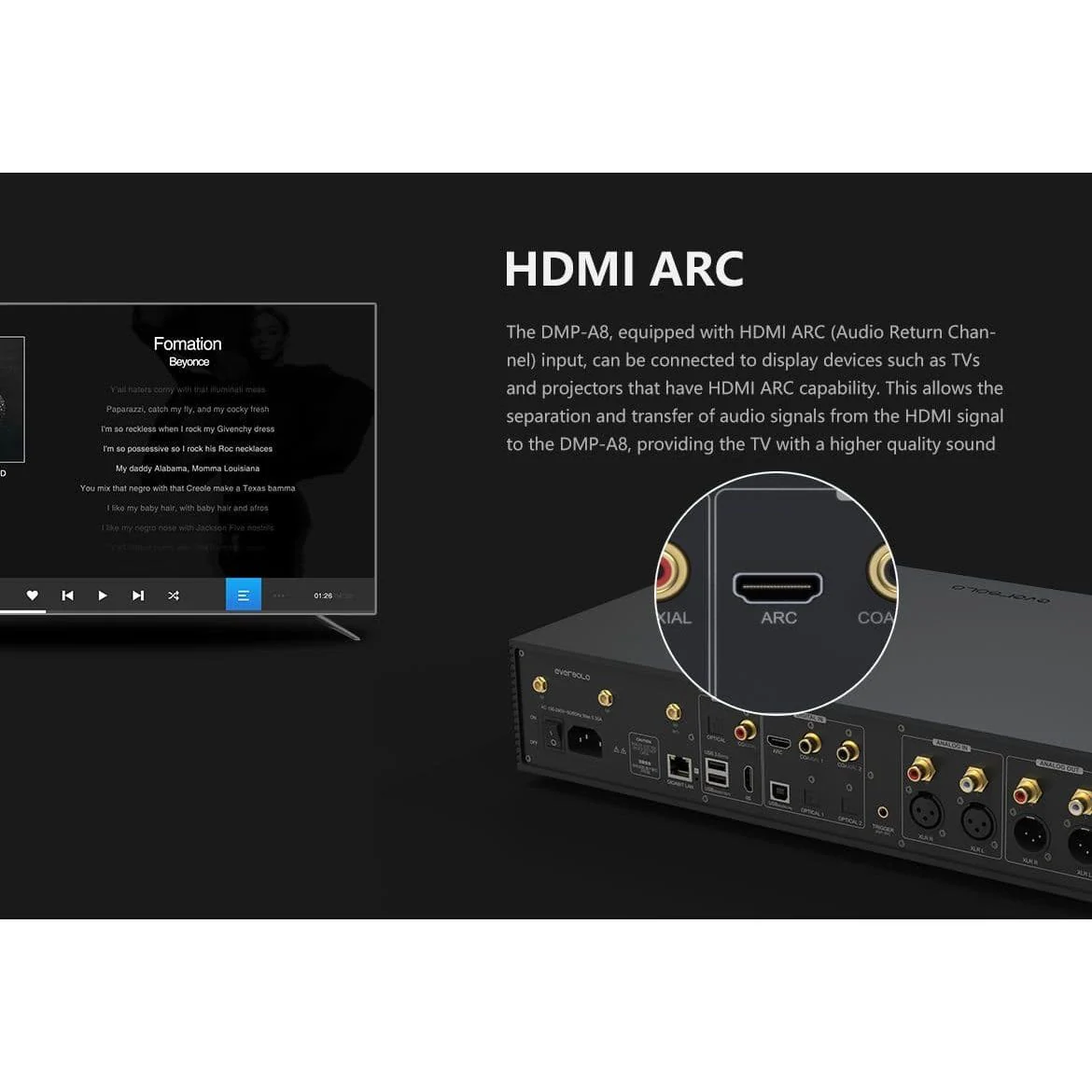

• HDMI eARC/ARC In (selectable).

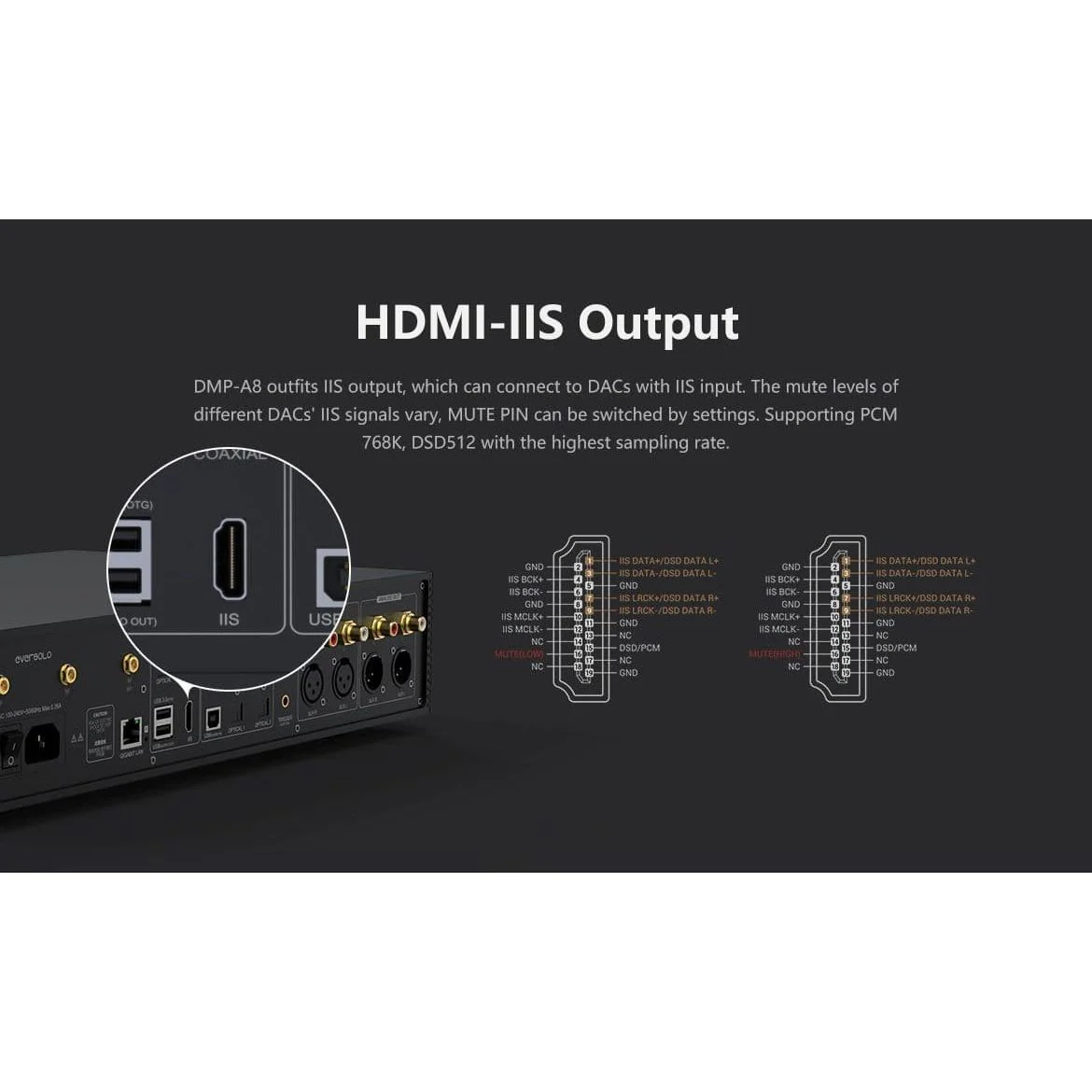

• HDMI-IIS Out (I2S).
• 12v Trigger Out.
• Full DSP Processor with individual configuration profiles for your source of choice (Internal Player, Bluetooth 5.0, USB, Optical 1 & 2, Coax 1 & 2, eARC/ARC).
• All digital sources/inputs can be routed to the HDMI-IIS (I2S) Digital Output.

Specifications

Model	EVERSOLO DMP-A8

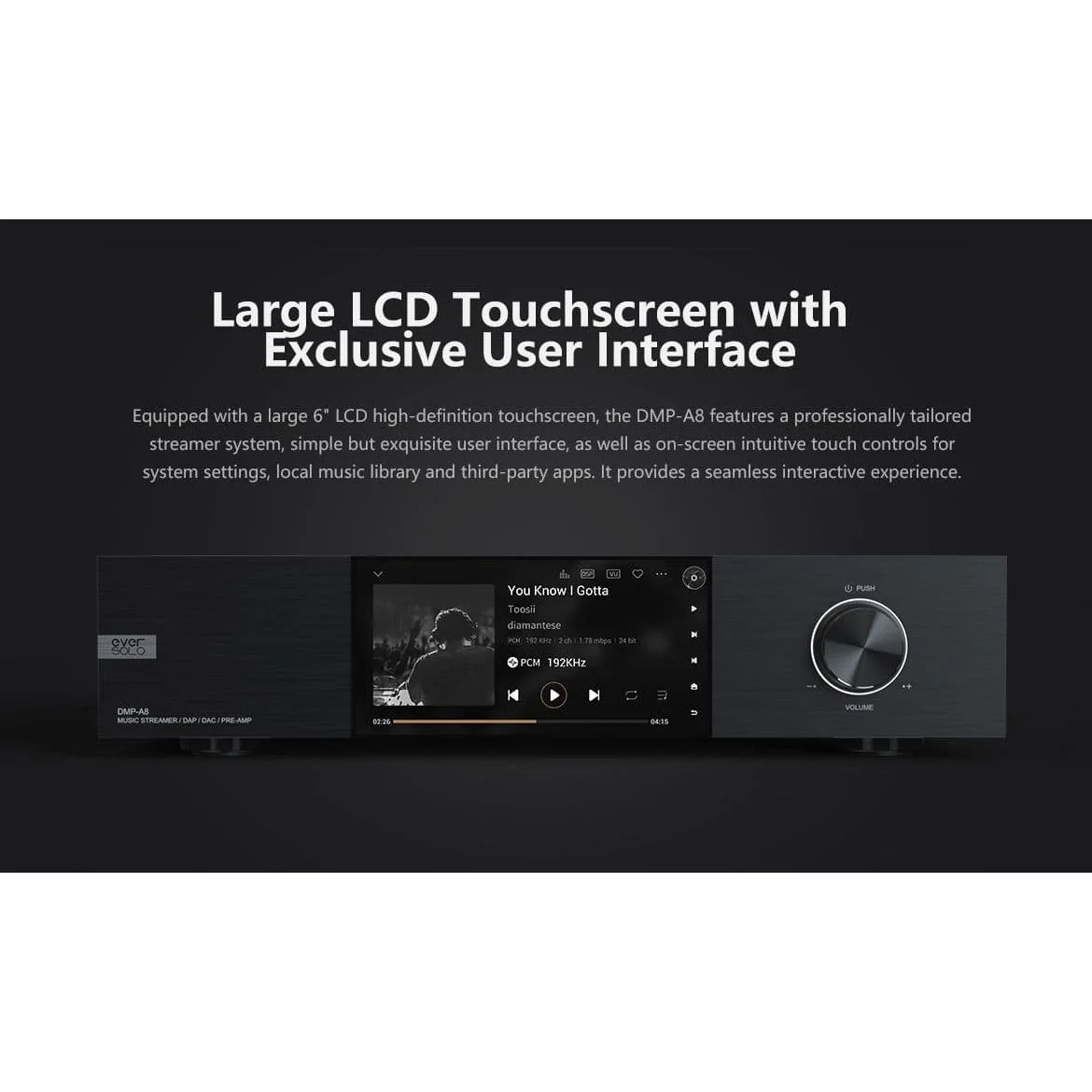

Display	6" LCD touchscreen
Internal Memory	4GDDR4 +64GeMMC
DAC	AK4191EQ + AK4499EX - Velvet Sound Verita
Audio Processor	XMOS XU316
Op-amp Chip	OPA1612
Clocking Architecture	Dual Femto Clocks - Ultra Low-Phase Noise High Precision Accusilicon Clocks
Power Supply	High-quality, low-noise linear + digital dual power supply

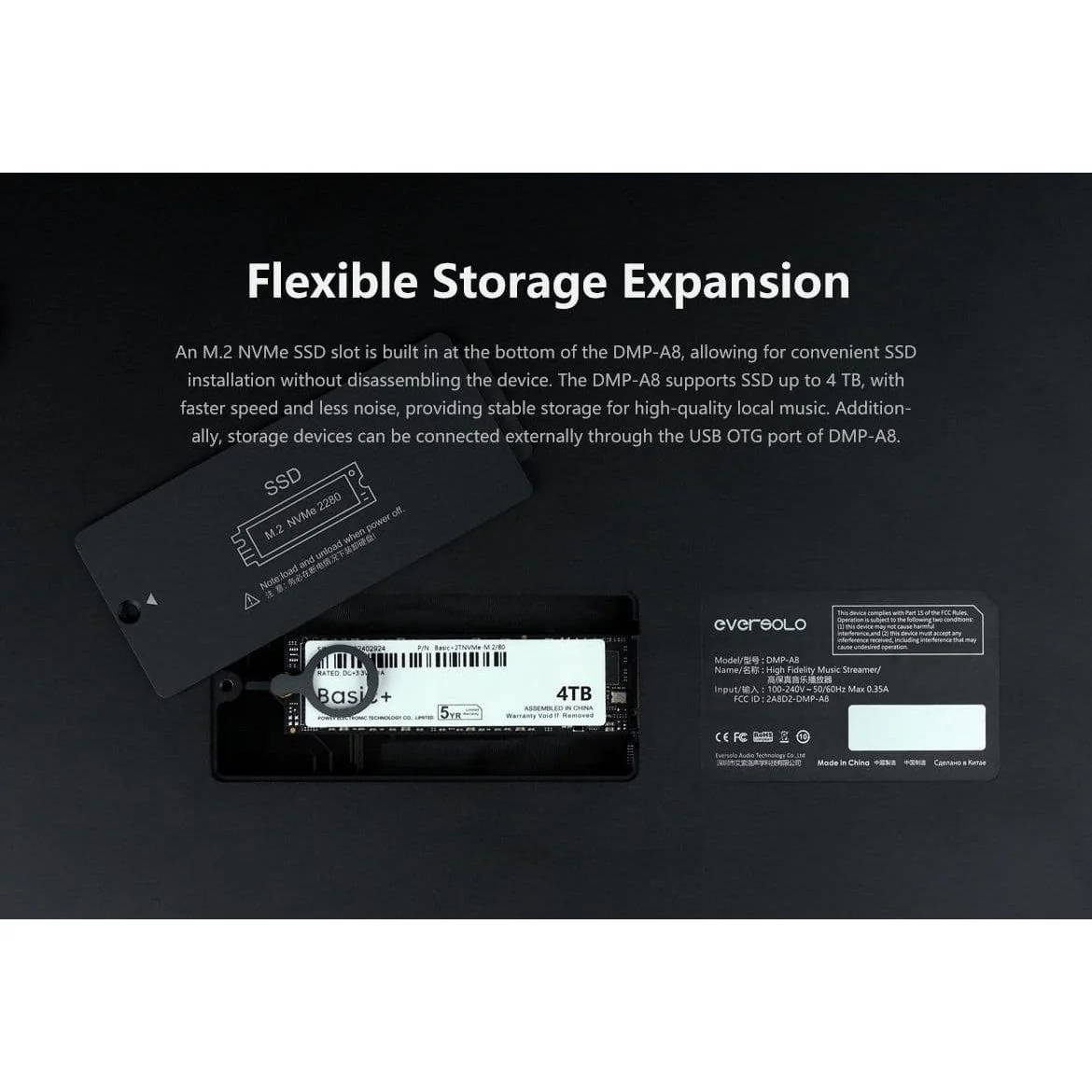

SSD	Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn't included).
USB-A Port	USB 3.0*2
Ethernet	RJ-45(10/100/1000Mbps)
WiFi	WiFi 2.4G+5G dual band
Playback and DAC Decoding	Support up to stereo DSD512, PCM 768KHz 32Bit, MQA
Music Service	Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP

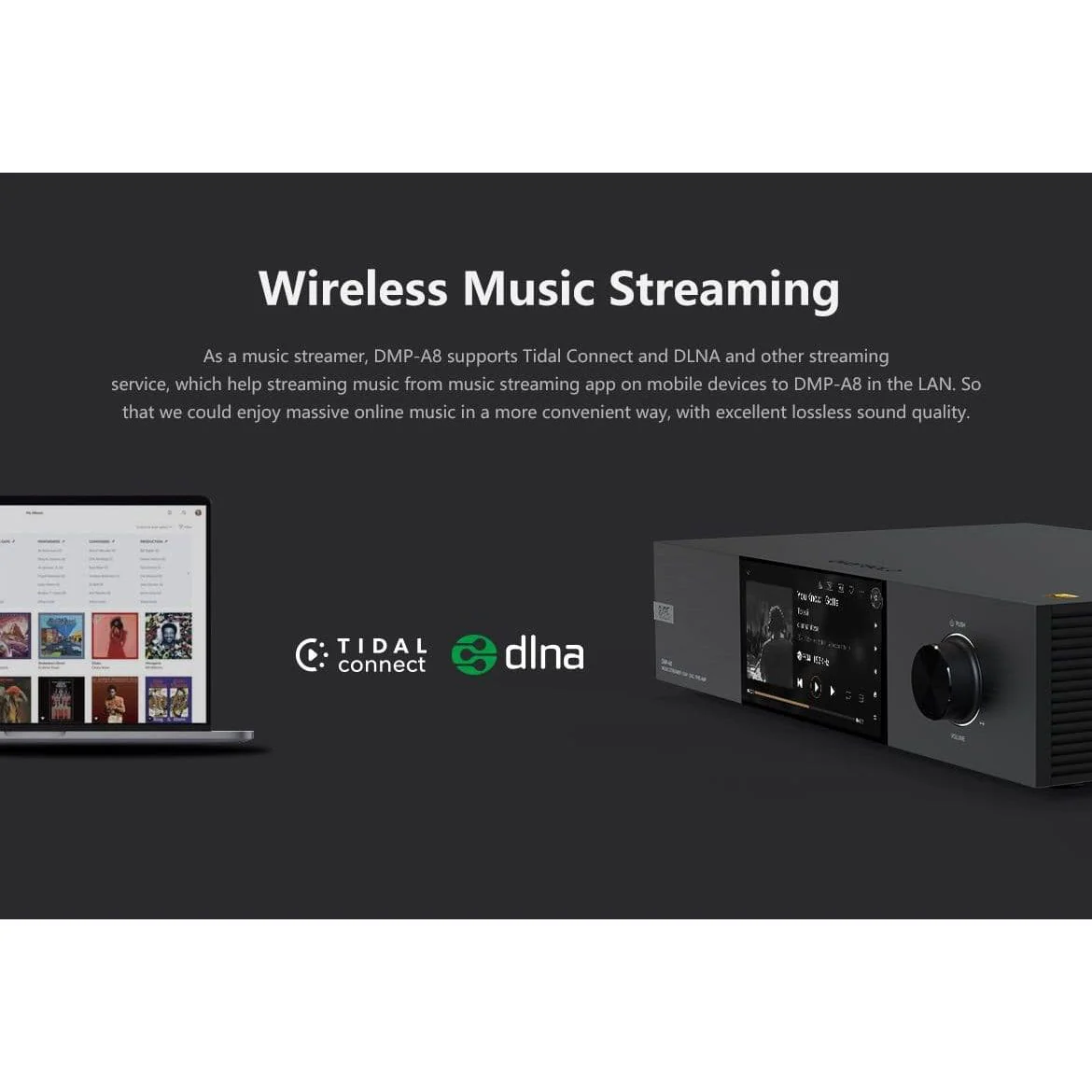

Streaming	Air Play, DLNA, Tidal Connect etc.Bluetooth Audio Input
Bluetooth BT	5.0, support SBC / AAC / aptX / aptX LL / aptX HD / LDAC
USB-B Audio Input	Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input	Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC	Support up to stereo PCM 192KHz 24Bit
Analog preamp audio input	XLR(Balanced)*1+RCA(Unbal), Maximum Gain +10dB - Full R2R Topology
USB Audio Output	Support up to stereo DSD512，PCM 768KHz 32Bit
IIS Output	Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output	Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output	Preamp Audio Output: XLR(Balanced)+RCA(UnBalanced) - Full R2R Topology
XLR Output Audio Characteristics	Output level: 4.2V Frequency response: 20Hz~20KHz(±0. 25dB) >Dynamic range: > 128dB SNR: >128dB THD+N: <0.00009%(-120dB) @No-wt Crosstalk: >-121dB
RCA Output Audio Characteristics	Output level: 2.1V Frequency response: 20Hz~20KHz (±0. 25dB) Dynamic range: > 125dB SNR: >125dB THD+N: <0.00010%(-119dB)@A-WT Crosstalk: >-121dB
Control Method	Mobile App，Touch screen control，IR+Bluetooth remote control
Dual PSU	AC 110~240V 50/60Hz - EverSolo Dual ULN PSU
Rated Power	16W
Dimensions	W 388mm*L 248mm* H 90mm
Packing List	Power cable*1, Remote Control*1，Screwdriver*1，user manual*1
