The Story

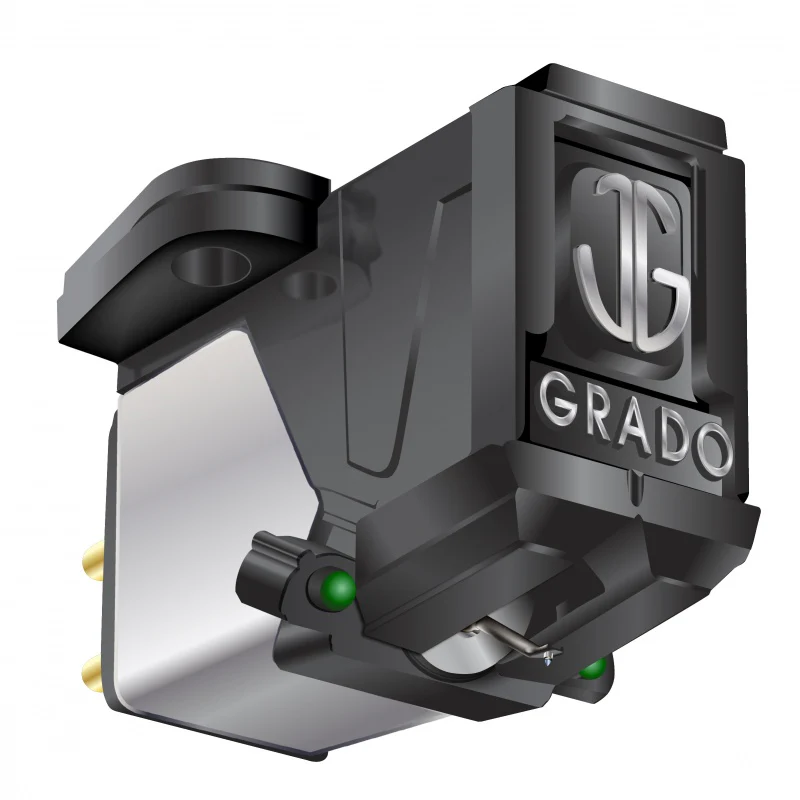

The Green3 uses a three piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.
Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.
The Green3 is hand assembled by Grado's team in Brooklyn, with some builders having over 25 years of experience. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. The coil winding techniques using ultra high purity copper wire, which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.
As in all Grado phono cartridges the Green3 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Green3 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.
Specs
- Output - 4 mV @ 5 CMV (45 degrees)
- Frequency Response - 10-55,000 Hz
- Channel Separation - Average 25 DB, 10-30,000 Hz
- Stylus - Diamond- Elliptical
- Input Load - 10k - 47k ohms
- Induction - 50 mH
- DC Resistance - 660 ohms
- Cartridge Weight - 6 grams
- Tracking Force - 1.6 -1.9 grams
- Compliance - 20 um/mN
- Mounting - P-mount or 1/2’’ Screw Mount
Description
The Green3 uses a three piece OTL cantilever that has a Grado specific diamond mounted on a brass bushing.
Grado’s OTL stylus/cantilever design makes records sound quieter, improves the height, width, and depth of the soundstage, and present more detail than previously obtainable.
The Green3 is hand assembled by Grado's team in Brooklyn, with some builders having over 25 years of experience. This updated series of cartridges offers excellent tonal balance, dynamics, and realism, for a most rewarding reproduction of vocals and instruments. The coil winding techniques using ultra high purity copper wire, which were honed during the development of the Lineage Series, have let the electrical circuits achieve unison between the four coils in each phono cartridge. This allows for a precise balance between channels and accurate stereo imaging.
As in all Grado phono cartridges the Green3 is powered by a twin magnet system that optimizes the balance between stereo channels. All internal magnetic circuit parts are held to extremely high tolerances creating the desired stereo imaging. Grado’s patented Flux-Bridger design allows the Green3 to have one of the lowest effective moving mass generating systems while creating an excellent balance throughout the full frequency range.
Specs
- Output - 4 mV @ 5 CMV (45 degrees)
- Frequency Response - 10-55,000 Hz
- Channel Separation - Average 25 DB, 10-30,000 Hz
- Stylus - Diamond- Elliptical
- Input Load - 10k - 47k ohms
- Induction - 50 mH
- DC Resistance - 660 ohms
- Cartridge Weight - 6 grams
- Tracking Force - 1.6 -1.9 grams
- Compliance - 20 um/mN
- Mounting - P-mount or 1/2’’ Screw Mount
