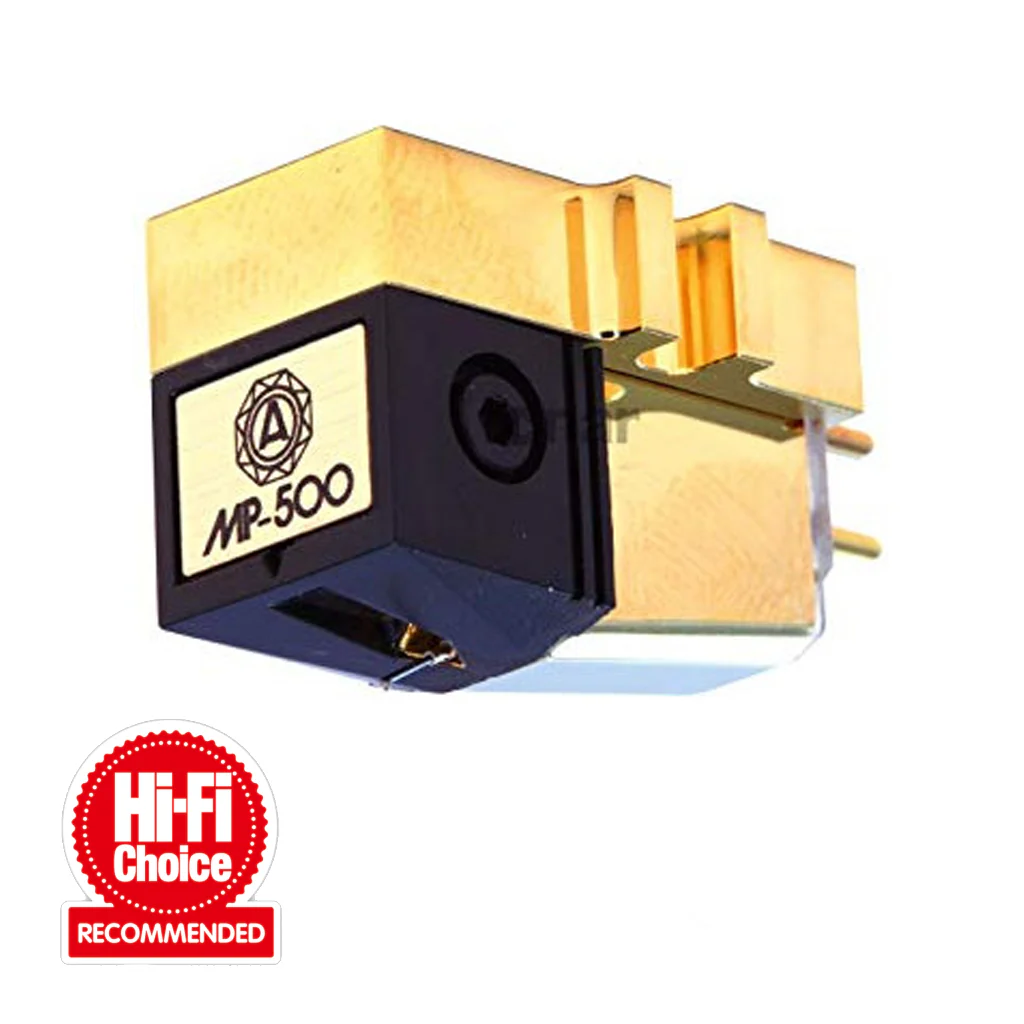

Nagaoka MP-500 Cartridge
HomeStore

Nagaoka MP-500 Cartridge

Nagaoka MP-500 Cartridge

$424.31

Original: $1,212.32

-65%
Nagaoka MP-500 Cartridge—

$1,212.32

$424.31

The Story

The Nagaoka MP-500 phonograph cartridge offers the highest musical and creative expression of the new MP series. It expertly extracts and reproduces with vivid, colorful and dimensional clarity what others miss. Meet our little friend - the Nagaoka MP-500 phonograph cartridge - the master of the grooves.
Features
-Exclusive super rigid body for ultra resonance and superb fidelity
-Superfine line contact diamond stylus
-Powerfull samarium cobalt magnet
-Low-mass, high strenght boron cantilever
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs



•Principle: MM
•Cantilever: High-strength boron

•Frequency response: 20 - 25,000 Hz
•Channel balance: better than 1.0 dB
•Channel separation: better than 27 dB at 1kHz

•Output voltage: 3 mV (5 cm/sec)
•Tracking force: 1.3 - 1.8 g
•Impedance: 47 000 ohms
•Dynamic compliance: 8.5 x10-6/dyne
•Weight: 8.0 g
•Mounting: 1/2 inch

•Microsection: super-fine, line-contact diamond

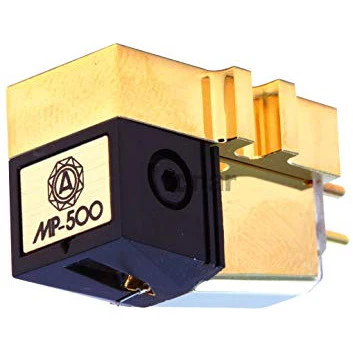

Nagaoka MP-500 Cartridge - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

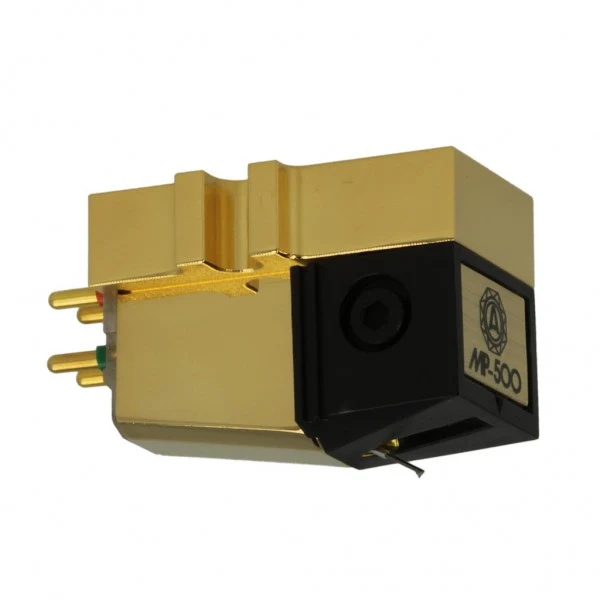

Nagaoka MP-500 Cartridge - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Nagaoka MP-500 Cartridge - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The Nagaoka MP-500 phonograph cartridge offers the highest musical and creative expression of the new MP series. It expertly extracts and reproduces with vivid, colorful and dimensional clarity what others miss. Meet our little friend - the Nagaoka MP-500 phonograph cartridge - the master of the grooves.
Features
-Exclusive super rigid body for ultra resonance and superb fidelity
-Superfine line contact diamond stylus
-Powerfull samarium cobalt magnet
-Low-mass, high strenght boron cantilever
-Carbon fibre reinforced plastic shoe
-Anti ferro magnetic permalloy shield casing
Specs



•Principle: MM
•Cantilever: High-strength boron

•Frequency response: 20 - 25,000 Hz
•Channel balance: better than 1.0 dB
•Channel separation: better than 27 dB at 1kHz

•Output voltage: 3 mV (5 cm/sec)
•Tracking force: 1.3 - 1.8 g
•Impedance: 47 000 ohms
•Dynamic compliance: 8.5 x10-6/dyne
•Weight: 8.0 g
•Mounting: 1/2 inch

•Microsection: super-fine, line-contact diamond
