Perlisten Model R15s Subwoofer
HomeStore

Perlisten Model R15s Subwoofer

Perlisten Model R15s Subwoofer

$2,123.42

Original: $6,066.92

-65%
Perlisten Model R15s Subwoofer

$6,066.92

$2,123.42

The Story

R15s
subwoofer

Tiny frame, mighty bass. Grills are optional.

Subwoofer
is the new black

Standard finishes

Satin black



Grills are optional

It's all in
the details

R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

Alignment Acoustic suspension
Amplifer 1.0kW rms
Display Interface 2.4" LCD color touchscreen
App iOS and Android
Processor 32-bit ARM Cortex M4, double precision floating point math
DSP Engine Ti DSP 48-bit data paths
Driver compliment 380mm, Glass fiber diaphragm
+/-23.7mm linear excursion
Reference sensitivity 92dB /150mV/ 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ

20-388Hz (-6dB) / 16-468Hz (-10dB)
16-388Hz (-6dB) / 14-468Hz (-10dB)
25-388Hz (-6dB) / 19-468Hz (-10dB)
Inputs (1) Balanced XLR
(1) Unbalanced RCA
Outputs (1) Balanced XLR unbuffered
(1) Unbalanced RCA unbuffered
Parametric EQ 10-Band PEQ with 3 user presets
Low Pass filter Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase Variable 0-270°
Polarity Normal / inverted
Configurable Auto turn-on and 12v Trigger XLR, RCA
Dimensions (HxWxD) 498 x 460 x 465mm
19.6 x 18.1 x 18.3"
Weight overall 35.5 kg (78.1 lbs.)
Available finishes Satin black

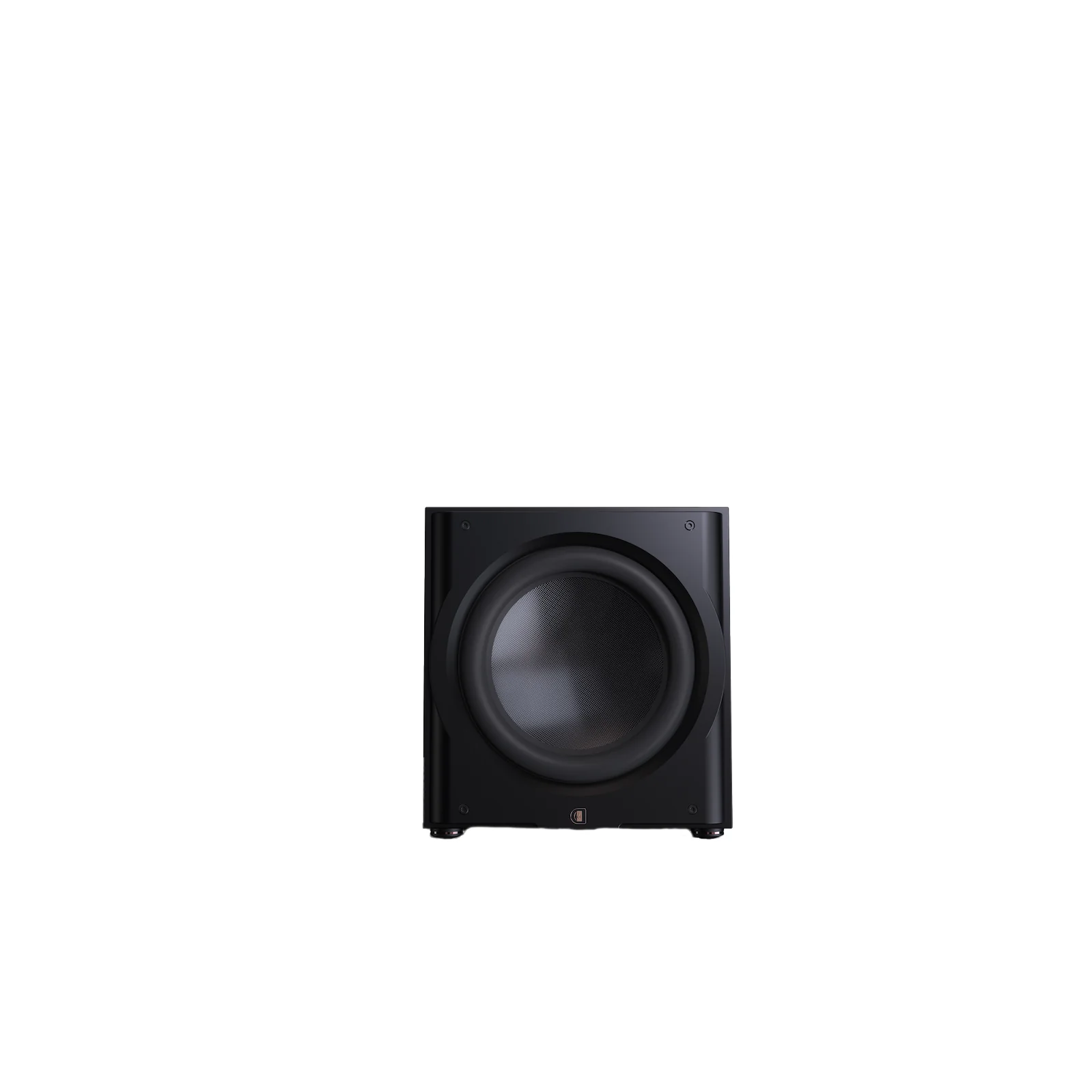

Perlisten Model R15s Subwoofer - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Perlisten Model R15s Subwoofer - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Perlisten Model R15s Subwoofer - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Perlisten Model R15s Subwoofer - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

R15s
subwoofer

Tiny frame, mighty bass. Grills are optional.

Subwoofer
is the new black

Standard finishes

Satin black



Grills are optional

It's all in
the details

R-Series subs – Trickle down technology from our flagship D-Series, we’ve developed a lineup of single driver based subwoofers. Ground up drivers developed by our team of engineers. Glass fiber composite diaphragms, multiple aluminum shorting rings, massive magnets, multi-layer Nomex spiders and lightweight aluminum voice coil wire are the key ingredients – Proprietary nonlinear modeling techniques allow us to simulate all these components and then optimize for real world driver performance – free air and in box. Further refinement is done with the aid of our Klippel laser measurement system to dial things in. Powered by our new 1.0kW amplifier, all functions and safeties are controlled by a 48-bit data bath DSP and 32-bit ARM M4 Cortex processor, able to react in microseconds ensuring sonic accuracy. All R-Series subs share our 2.4” LCD touchscreen display and ability to control advance settings using our App.

Alignment Acoustic suspension
Amplifer 1.0kW rms
Display Interface 2.4" LCD color touchscreen
App iOS and Android
Processor 32-bit ARM Cortex M4, double precision floating point math
DSP Engine Ti DSP 48-bit data paths
Driver compliment 380mm, Glass fiber diaphragm
+/-23.7mm linear excursion
Reference sensitivity 92dB /150mV/ 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ

20-388Hz (-6dB) / 16-468Hz (-10dB)
16-388Hz (-6dB) / 14-468Hz (-10dB)
25-388Hz (-6dB) / 19-468Hz (-10dB)
Inputs (1) Balanced XLR
(1) Unbalanced RCA
Outputs (1) Balanced XLR unbuffered
(1) Unbalanced RCA unbuffered
Parametric EQ 10-Band PEQ with 3 user presets
Low Pass filter Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase Variable 0-270°
Polarity Normal / inverted
Configurable Auto turn-on and 12v Trigger XLR, RCA
Dimensions (HxWxD) 498 x 460 x 465mm
19.6 x 18.1 x 18.3"
Weight overall 35.5 kg (78.1 lbs.)
Available finishes Satin black
