SVS PB-3000 Revolution Subwoofer

The SVS PB-3000 Revolution Subwoofer delivers breathtaking, room-filling bass that extends down to an astonishing 16 Hz, combining sheer power with the refinement of a true reference subwoofer. Designed for both cinematic impact and musical accuracy, it produces low frequencies that are not only heard but physically felt.

This subwoofer is engineered to energize large spaces with ease, delivering massive sonic output while maintaining tight control and exceptional detail. Whether reproducing explosive movie soundtracks or the subtle textures of acoustic instruments, the PB-3000 Revolution maintains clarity and composure.

Its ability to blend visceral impact with precise control makes it a compelling choice for listeners who demand both emotional engagement and technical excellence from their low-frequency performance.

A New Benchmark in Ported Subwoofer Design

The PB-3000 Revolution Subwoofer represents the culmination of more than two decades of acoustic innovation from SVS. Drawing on technologies developed for the flagship 17 Ultra Revolution Series, it delivers a rare combination of deep extension, immense output, and lightning-fast transient response with virtually untraceable distortion.

Positioned as the sweet spot within the SVS lineup, the 3000 Revolution Series redefines expectations for what a ported subwoofer can achieve at its size and price. Rather than simply producing loud bass, the PB-3000 Revolution unleashes low frequencies with authority and finesse, transforming music, movies, and games into immersive, emotionally charged experiences that linger long after listening ends.

Breakthrough 13 Inch Driver Architecture

At the heart of the SVS PB-3000 Revolution Subwoofer is an all-new high excursion 13 inch driver engineered for extreme output with surgical precision. Its flat edge split wind voice coil maximizes magnetic force at high excursion while keeping moving mass low for speed and responsiveness. A two-piece toroidal ferrite overhung motor maintains linearity even at punishing sound pressure levels, ensuring clean start and stop behavior.

The rigid 1100 pure aluminum cone remains neutral and distortion free under extreme conditions, while the long throw SBR surround enables massive driver movement without sacrificing pistonic control. Together, these elements deliver deep, authoritative bass that is powerful, accurate, and remarkably composed.

High Power Amplification with Intelligent Control

Driving the PB-3000 Revolution Subwoofer is the formidable STA-1200D2 MOSFET amplifier, conservatively rated at 1,200 watts continuous with more than 4,000 watts of peak power. This design blends the efficiency of Class D amplification with the current handling capability of fully discrete MOSFET output stages, delivering effortless power with absolute control.

A performance-enhancing switch-mode power supply continuously monitors voltage, current, and temperature to ensure consistent output under all operating conditions. Premium 56 bit digital audio processing and high performance DACs provide more than 120 dB signal to noise ratio, delivering exceptional headroom, low noise, and pristine fidelity even during the most demanding passages.

Advanced DSP and App-Based Customization

Orchestrating the entire system is a powerful 295 MHz Analog Devices digital signal processor, the most sophisticated DSP ever used in an SVS subwoofer. It precisely shapes in-room frequency response, stabilizes amplifier performance, and protects the system through continuous thermal, voltage, and current monitoring.

User control is equally advanced thanks to the SVS smartphone app, which connects via Bluetooth for convenient adjustment from the listening position. Users can control volume, crossover, phase, polarity, parametric equalization, room gain compensation, and power management. Variable port tuning modes with included port plugs allow customization for maximum output or sealed-style transient speed, with presets available for music, movies, and night listening.

Rigid Ported Cabinet and Refined Construction

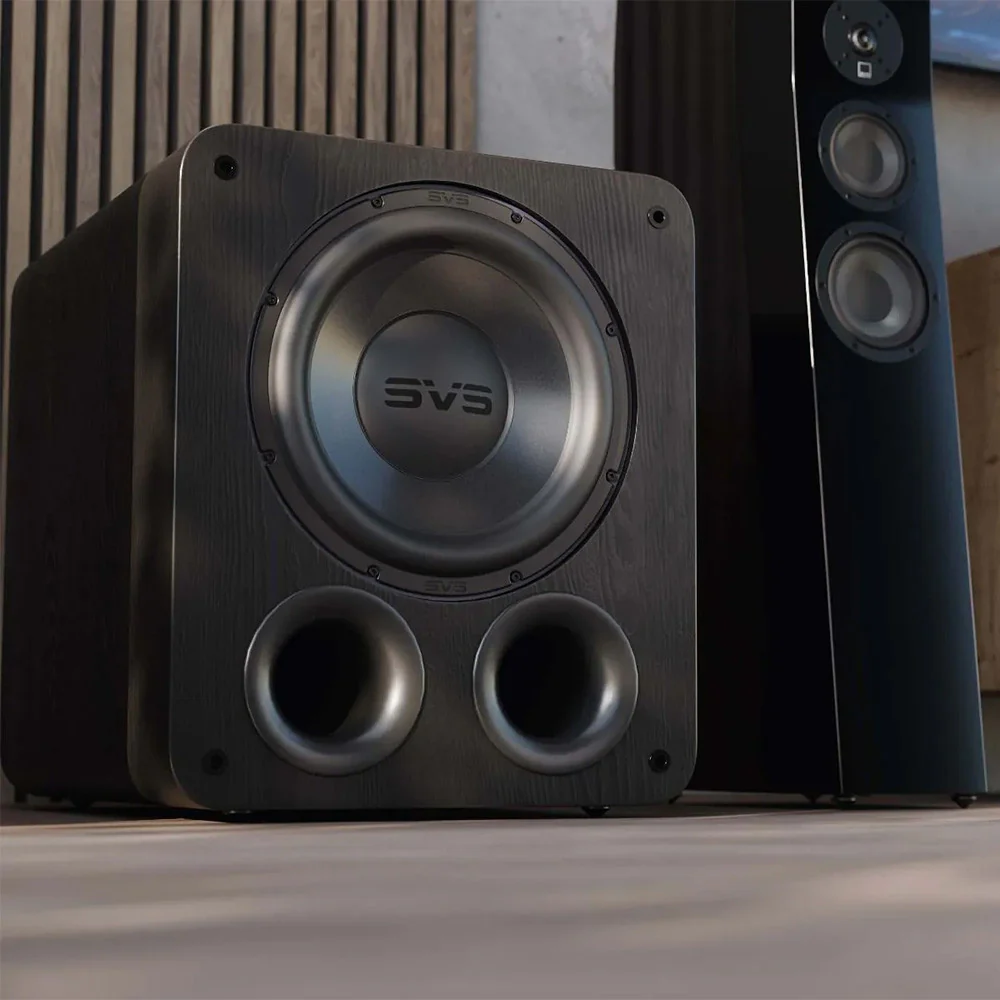

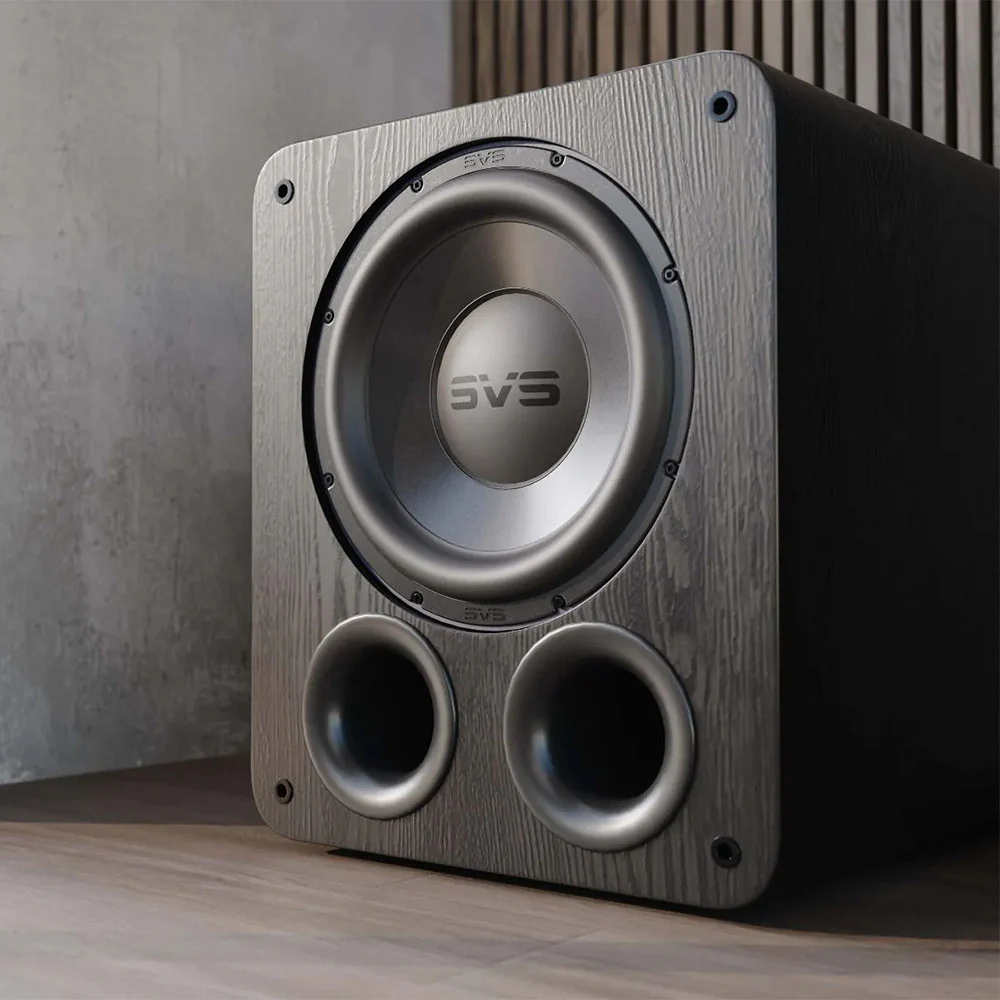

The cabinet of the SVS PB-3000 Revolution Subwoofer is engineered to be acoustically inert while delivering massive airflow and dynamic headroom. Its dual-ported design uses two high-flow 3.5-inch rounded ports to enable deep extension without audible port noise. A rigid MDF front baffle and extensive internal bracing support the powerful driver and eliminate cabinet resonance, even at reference volume.

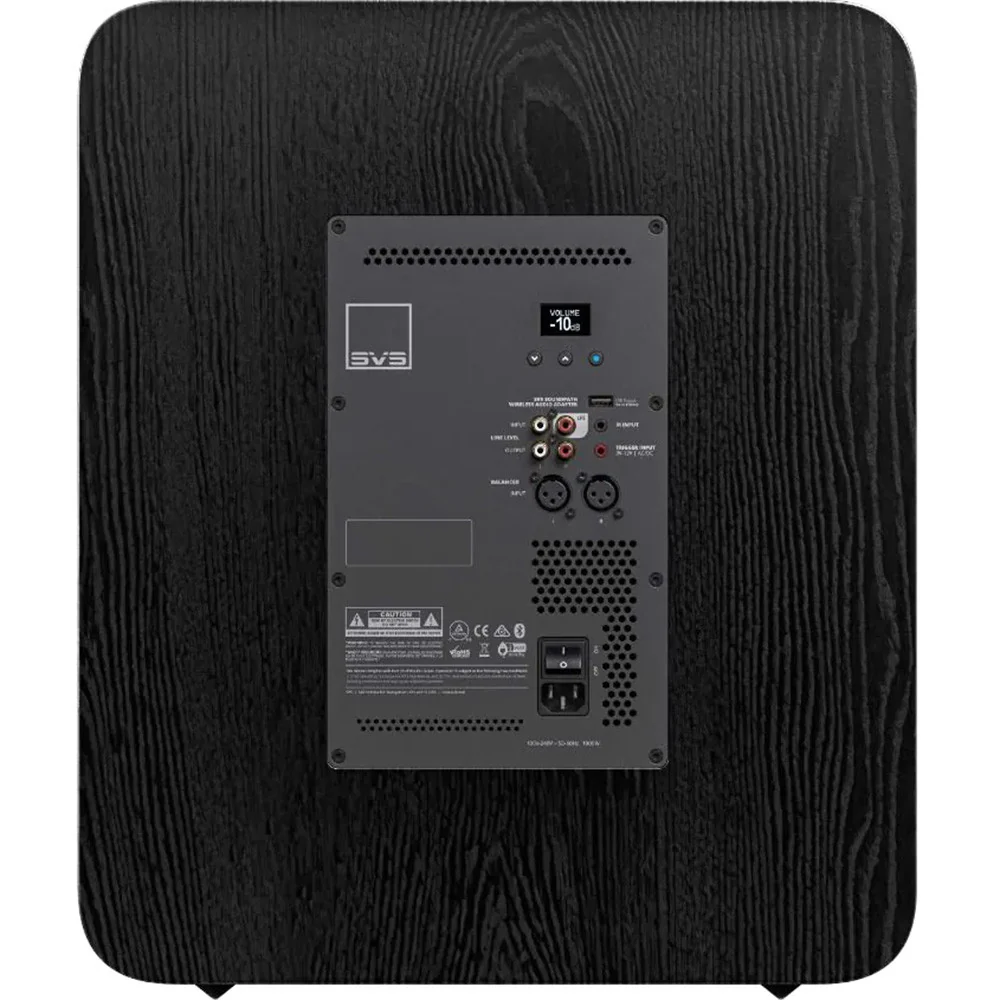

Acoustic insulation further suppresses coloration, ensuring clean and accurate bass reproduction. A thick non-resonant grille protects the driver, while custom elastomer feet reduce vibration transfer into the room. A rear panel OLED display provides direct access to key controls, completing a design that balances brute force with refined engineering.

- Driver - 13"
- Amplifier - 1200 watts RMS (4000+ watts peak)
- Frequency Response - 16-235Hz ± 3 dB (standard mode)
- 17-270 Hz ± 3 dB (sealed mode)
- Dimensions (HxWxD) - 556mm x 464mm x 627mm
