$1,486.02The Story

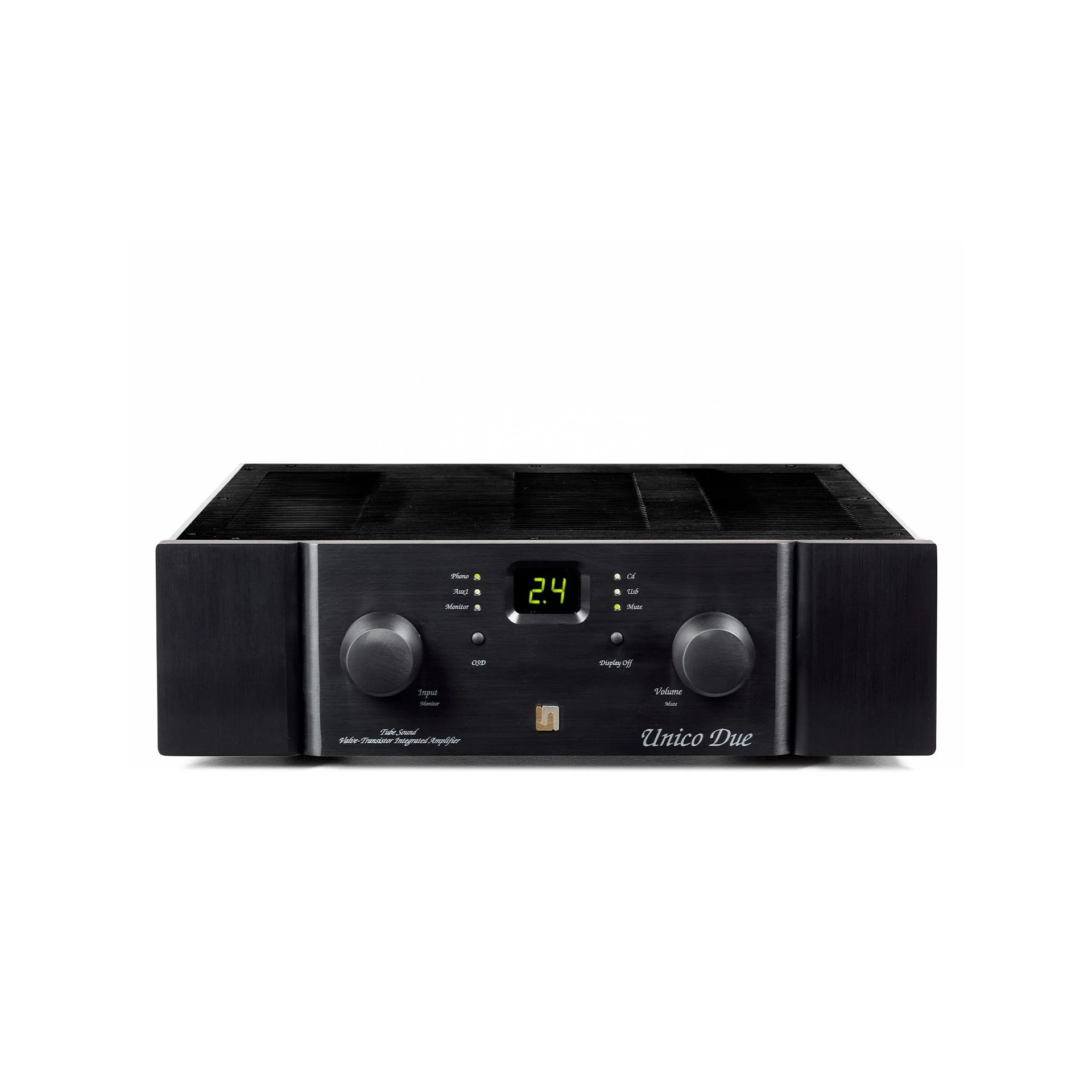

Unico Due is the latest amplifier from Unison Research. Unico Due benefits from Unison Research’s decades of experience in design and production technology. It maintains all the best qualities that made its predecessor a runaway success and introduces new and enhanced features.
The electronic circuitry of the Unico Due has been completely redesigned. While maintaining the qualities that made the Unico range such a legend in the audio industry, key improvements have been made that are nothing short of ground-breaking. Firstly, the power supply circuits have been enhanced thanks to a substantial increase in filter capacitance size and to a new high quality shielded and encapsulated power transformer. The new power distribution system of the audio power output stage combines space optimization and superior circuit solutions.
Tech spechs
- Output power: 100+100W on 8Ω, 180+180W on 4Ω, 290W+290W on 2Ω
- Valves: 2 x ECC83 (12AX7)
- Filter capacitance: 80,000uF
- Output stage: Dynamic Class A 4X power BJT double complementary pair, “Super-Symmetric” configuration
- Biasing: Dynamic Class A
- Inputs: 3 analogue line (RCA) programmable volume AV input, 1 digital (USB), 1 tape RCA, 1 Phono MM / MC
- Analogue line Outputs: 1 tape (RCA), 1 stereo subwoofer (RCA), 1 DAC
- Remote: IR volume and source
- Dimensions: 43.5 x 43 x 13 cm (W x D x H)
- PHONO stage
- Input impedance: 47 kohm / 220 pF (MM) – 100 ohm / 440 pF (MC)
- Gain: MM 40 dB, MC 50 dB
- Gain Selection: +0 dB / +10 dB
- Max input voltage: 120 mV @ 1kHz (MM)
- RIAA: active low frequency, passive at high frequency
- THD: 0.09% @ 5mV, 1kHz, MM
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Unico Due is the latest amplifier from Unison Research. Unico Due benefits from Unison Research’s decades of experience in design and production technology. It maintains all the best qualities that made its predecessor a runaway success and introduces new and enhanced features.
The electronic circuitry of the Unico Due has been completely redesigned. While maintaining the qualities that made the Unico range such a legend in the audio industry, key improvements have been made that are nothing short of ground-breaking. Firstly, the power supply circuits have been enhanced thanks to a substantial increase in filter capacitance size and to a new high quality shielded and encapsulated power transformer. The new power distribution system of the audio power output stage combines space optimization and superior circuit solutions.
Tech spechs
- Output power: 100+100W on 8Ω, 180+180W on 4Ω, 290W+290W on 2Ω
- Valves: 2 x ECC83 (12AX7)
- Filter capacitance: 80,000uF
- Output stage: Dynamic Class A 4X power BJT double complementary pair, “Super-Symmetric” configuration
- Biasing: Dynamic Class A
- Inputs: 3 analogue line (RCA) programmable volume AV input, 1 digital (USB), 1 tape RCA, 1 Phono MM / MC
- Analogue line Outputs: 1 tape (RCA), 1 stereo subwoofer (RCA), 1 DAC
- Remote: IR volume and source
- Dimensions: 43.5 x 43 x 13 cm (W x D x H)
- PHONO stage
- Input impedance: 47 kohm / 220 pF (MM) – 100 ohm / 440 pF (MC)
- Gain: MM 40 dB, MC 50 dB
- Gain Selection: +0 dB / +10 dB
- Max input voltage: 120 mV @ 1kHz (MM)
- RIAA: active low frequency, passive at high frequency
- THD: 0.09% @ 5mV, 1kHz, MM
